Vibro-RW: Elastic Vibration Isolation Washer
Vibro-RW: Elastic Vibration Isolation Washer
Request a Quote.
Add products to the shopping cart and send us the list to receive a quote.
Category: ANTI-SHOCK BEARINGS
Description
Vibro-RW: Elastic Vibration Isolation Washer
Vibro-RW is a small rubber washer to isolate mechanical components from transmitting noise and vibration to underlying structures. It prevents any direct connection of the retaining screw and the bearing base, avoiding unwanted audio bridges.
Description

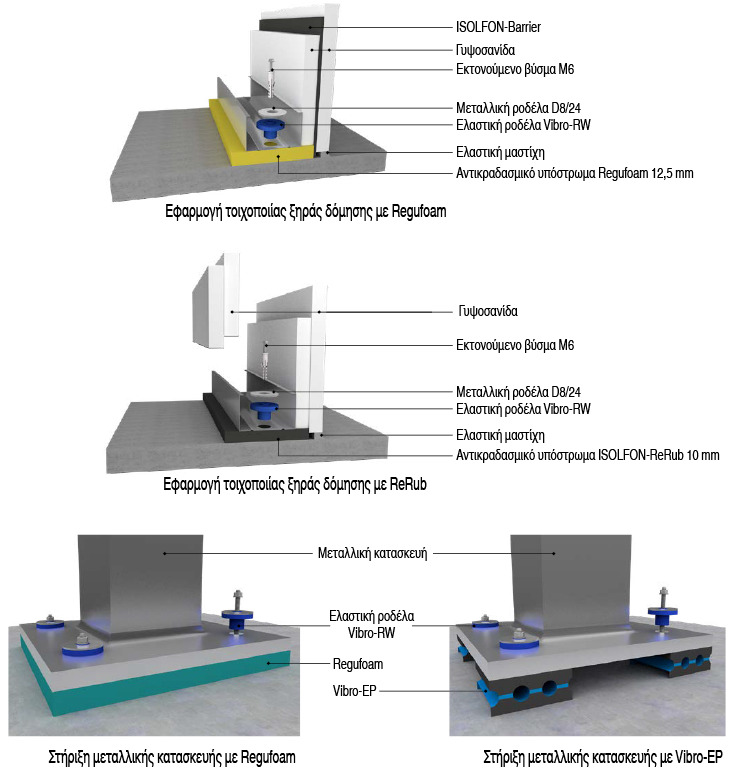

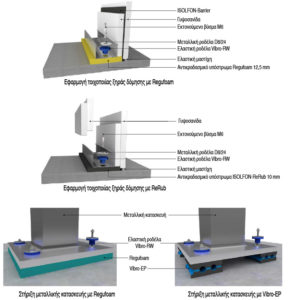

The Vibro-RW is a rubber washer specifically designed to isolate mechanical components from transmitting noise and vibration to underlying structures. It prevents any direct connection between the retaining screw and the bearing base, avoiding unwanted audio bridges. The Vibro-RW consists of a rubber washer, with a specially designed neck and an internal passage hole of diameter Φ7.5 mm. A metal washer is also included to evenly distribute the clamping force. Designed for ease of placement and prevention of sonic bridging when fixing structures.
