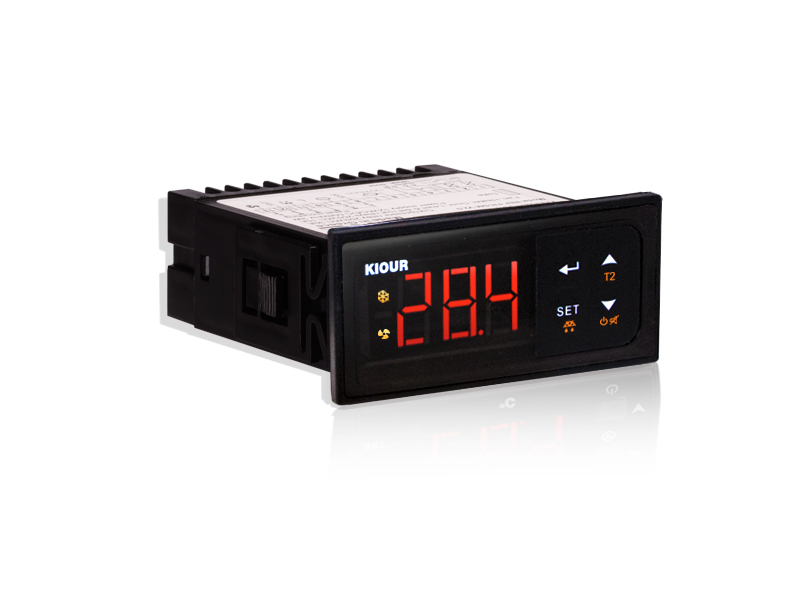

Cooling-Heating Thermostat MICF2, KIOUR

COOLING THERMOSTAT / HEATING - MICF2

• Thermostat for cooling - heating control applications
• It also works like safety thermostat
• It has two relays, where the first relay operates in PID (only in heating) or ON-OFF state while the latter only in ON-OFF state
• Both relays are set to cooling or heating mode with one set point or two set-points
• A sensor NTC 10Κ range -37 ÷ + 110 ° C (-34÷+230°F) the PTC 1Κ range -37 ÷ + 110 ° C (-58÷+230°F)
• Relay 1 at 250Vac 16A and relay 2 at 250Vac 10A
• Operating temperature: -15÷+55°C
• Storage temperature: -20÷+80°C
• Serial input
• Power supply: 230VAC 50/60Hz / Maximum operating power: 3W
• The device is mounted on a panel front with a hole 29x71mm and is held by side catches
• Connection with terminals 18A
