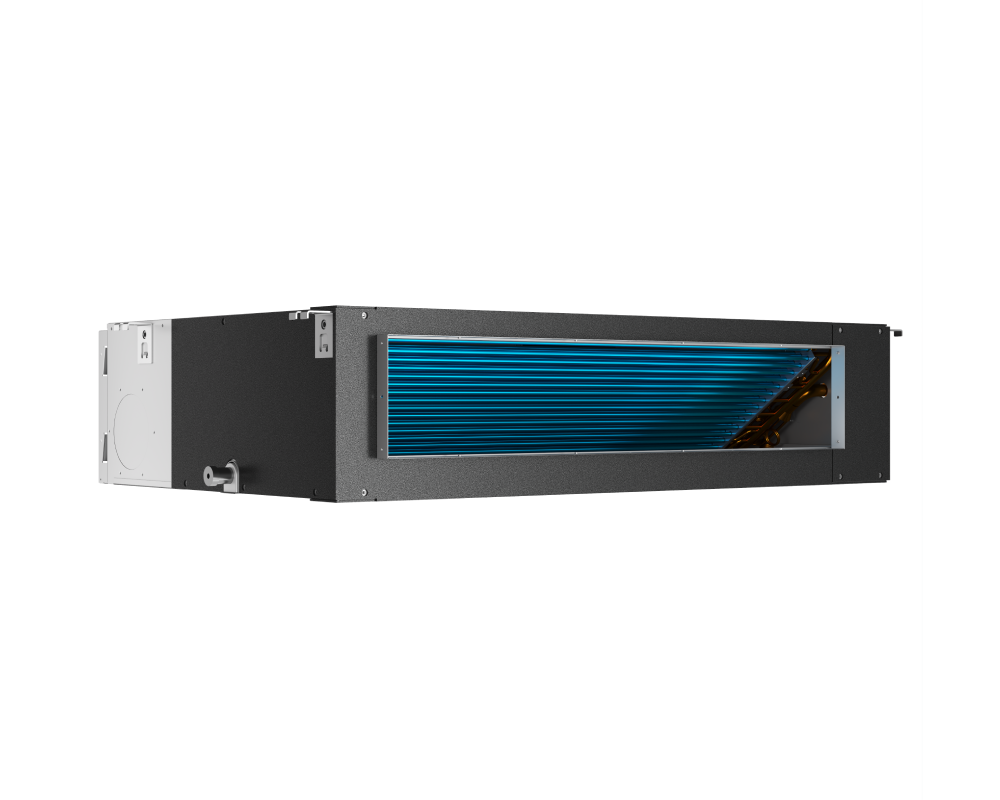

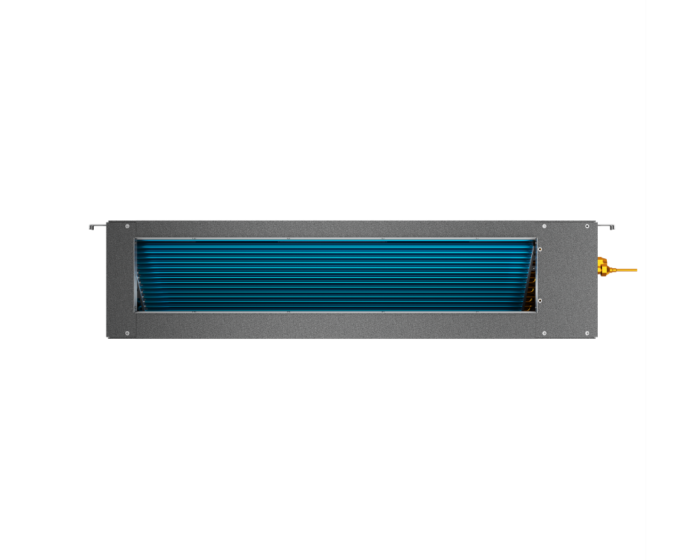

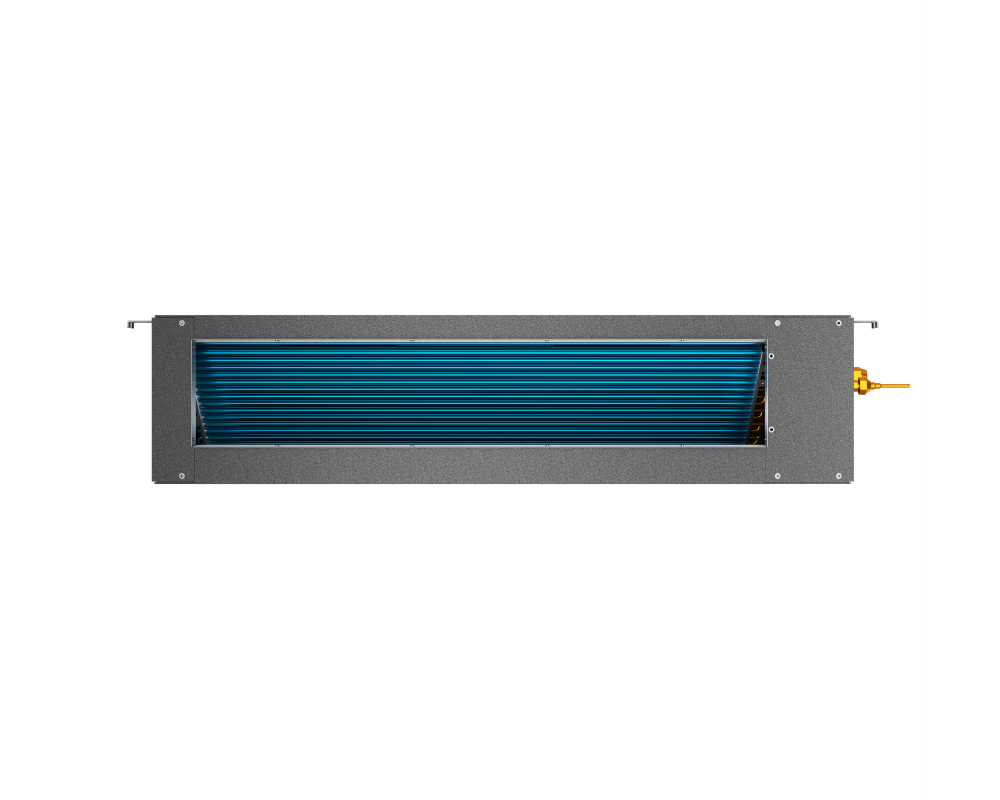

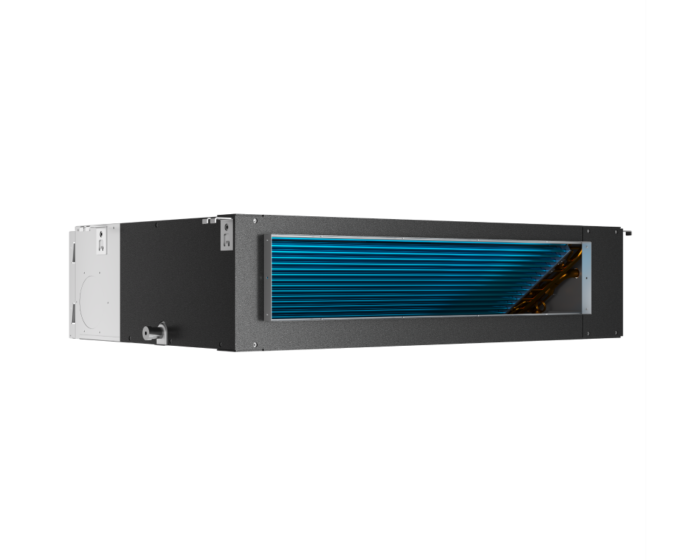

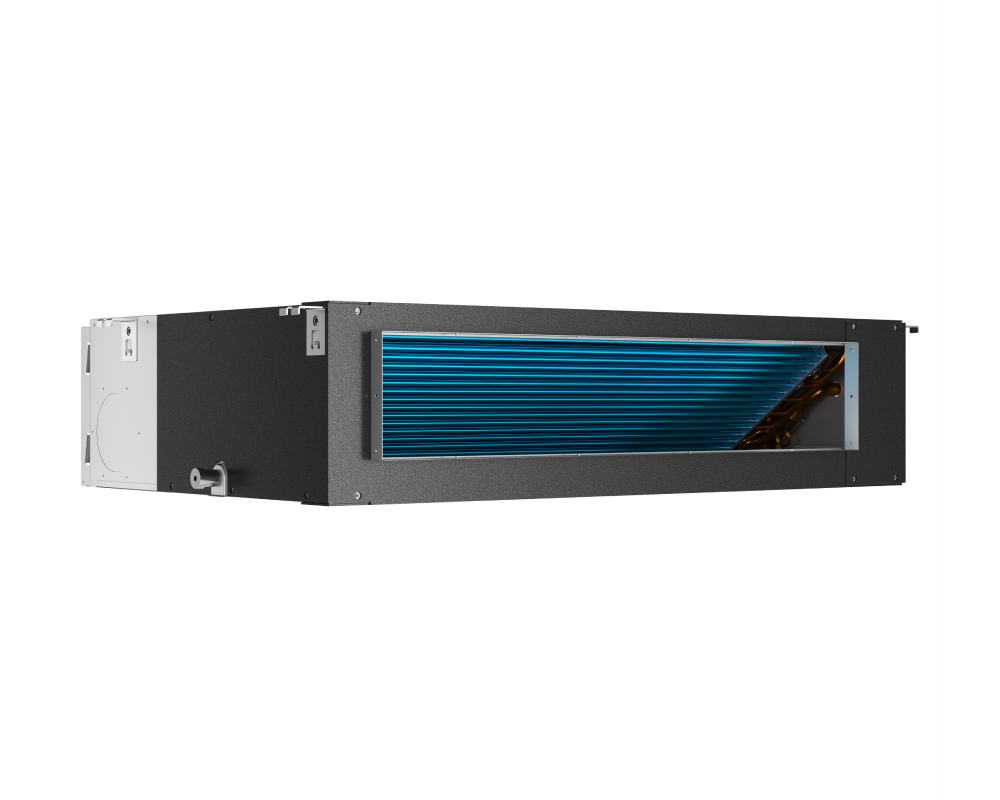

TCL AIR DUCT AIR CONDITIONER 55.000 BTU TCC-55D1HWH/DV7
TCL AIR DUCT AIR CONDITIONER 55.000 BTU TCC-55D1HWH/DV7
Fresh air intake up to 15%, ensuring superior indoor air quality, ideal for demanding professional and domestic spaces. It has a slim and elegant design, which reduces the required installation space and allows maximum utilization of the available space. The integrated condensate pump enhances the practicality and reliability of the installation. At the same time, the static pressure reaches up to 120Pa, ensuring comfort and smoothness, efficient air supply.
Description
TCL AIR DUCT AIR CONDITIONER 55.000 BTU TCC-55D1HWH/DV7
Air Duct Type Air Conditioner TCL TCC-55D1HWH/DV7 is the ideal choice for residences and business premises, offering high cooling efficiency of 55,000BTU with fresh air intake until 15%, ensuring excellent indoor air quality. THE fine design of the TCL air conditioner reduces the required installation space, enabling maximum exploitation of the space, while the integrated condensate pump ensures practicality and reliability in daily use. With wide static pressure range up to 120Pa, the TCL TCC-TCC-55D1HWH/DV7offers even air flow and comfort in all areas, maintaining a constant temperature. OR Full DC Inverter technology with R32 refrigerant contributes to energy economy and reduced power consumption, making the product ecological and economical . The TCL duct type air conditioner it is suitable for installation in suspended ceilings, offices, hotels, shops and residences, offering distinctive aesthetics and high performance. The unit has compact dimension, which facilitates installation and maintenance, while proper filter care further improves the durability and performance of the TCL TCC-55D1HWH/DV7 product . The TCL TCC-55D1HWH/DV7 combines effective cooling, fresh air intake, slim design and condensate pump, providing a complete and reliable air conditioning package. In addition, the silent operation ensures comfort without annoying noise, while the increased energy efficiency makes the unit economical to use. This product is ideal for spaces where high air quality and air conditioning performance are required, fully covering the needs of home and professional applications. With all these features , the TCL TCC-55D1HWH/DV7 is a complete solution for any space that needs efficient, reliable and economical air conditioning coverage. The reliability, the energy efficiency and comfort offered by this air conditioner make it a top choice for any application TCL.
| TCL model | TCC-55D1HWH/DV7(04) |
| Nominal cooling efficiency |
|
|
| Rated heating efficiency |
|
|
| Phdesignc | W | 16.000 |
| SEER | W/W | 6,1 |
| Energy Class Cooling | A ++ |
| Phdesignh (Middle Zone) | W | 11.900 |
| SCOP(Middle Zone) | W/W | 4 |
| Heating energy class (Middle Zone) | A + |
| Average Annual Energy Consumption (KWh/a)Cooling | 948 |
| Heating (middle zone) | 4.158 |
| Operating temperature range | °C | 16-31 |
| Ambient temperature range |
|
|
|
| Air supply and Noise level |
| Indoor unit air supply | m3/h |
| Sound pressure level (S/H/M/L/Silent) | Indoor | dB(A) | 52/48/45/42/41 |
| Sound power level (Typical conditions) | External | dB(A) | 62 |
| TCL Electrics |
| Electrical supply/ Connection | Indoor:220-240V~/50Hz/1p |
| Electrical supply side |
|
| Power Supply Voltage Range | (V) | 176~265 |
| Communication cable | 3×1,50mm2 |
| Power supply cable | Strands x Cross Section |
|
| Maximum Current | A | 12 |
| Characteristics of TCL cooling network |
| Refrigerant type/quantity/GWP/CO2 equivalent | R32/2.6kg/675/1.755t |
| Pipe cross-section |
|
|
| Maximum length | m | 75 |
| Maximum altitude difference | m | 30 |
| Prefilling | m | 5 |
| Completion | gr/m | 40 |
| Dimensions of TCL units |
| Net dimensions (M x Y x B) |
|
|
|
| Net Weight |
|
|
|
