INDUSTRIAL AND DOMESTIC VENTILATORS HXM-400
INDUSTRIAL AND DOMESTIC VENTILATORS HXM-400
Description

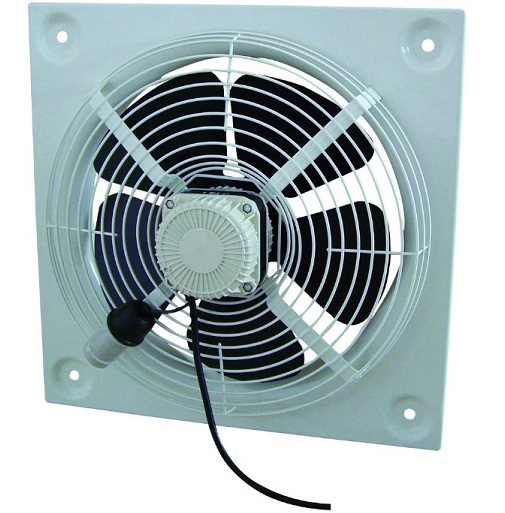

INDUSTRIAL AND DOMESTIC VENTILATORS HXM-400
- Motor 230V/50Hz.
- Motor protection IP44
- Class B, for air temperature from -15°C to +40°C . With thermal protection.
- The guys 200-350 have a 50cm connection cable.

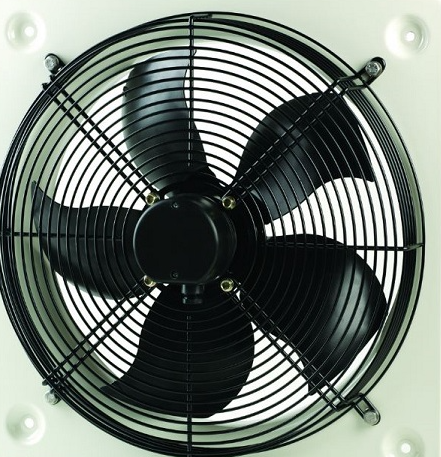

- The HXM-400 type is with an external rotor motor,IP44, Class F with thermal protection and connection box ,for air temperature from -40°C to +60°C.
APPLICATIONS: Coffee shops, restaurants, kitchens etc..
REGULATION: Dimmable with REB-2.5 and REB-E 5000C dimmer(AND 51E).
INSTALLATION ACCESSORIES: Gravity shutter (PER), aluminum spout, air quality sensor (QA) .
| TYPE | TURNS
rpm |
MAX. POWER ABSORPTION W | DELIVERY m3/h | DIAMETER 0mm | dB(A) | WEIGHT kg | FRAME DIMENSION mm | OPERATING TEMPERATURE°C
min max |
| HXM-400 | 1255 | 151 | 3.670 | 400 | 56 | 9,0 | 500 x 500 | -40 +60 |
