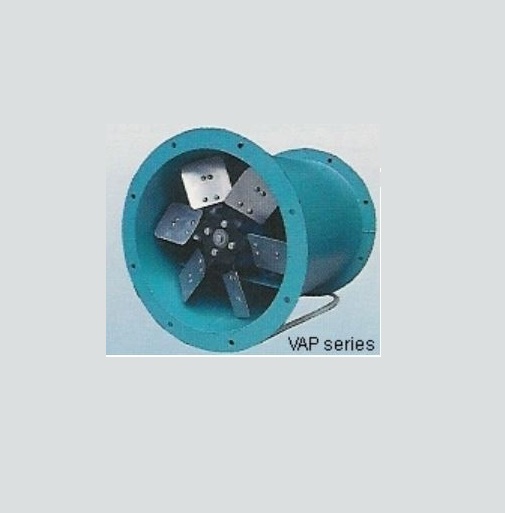

HEAVY DUTY AXIAL VENTILATORS VAPB/2-300/150
HEAVY DUTY AXIAL VENTILATORS VAPB/2-300/150
Description
HEAVY DUTY AXIAL VENTILATORS VAPB/2-300/150
- With 230V or 400V motor
- Shell made of reinforced steel plate .
- Extremely robust heavy-duty construction.
- aluminum impeller 6 F6 series fins.
- Greek construction.
APPLICATIONS: Suitable for exhausting gases in industrial areas and ships.
REGULATION: With INVERTER at 400V.
ON REQUIREMENT: They are also manufactured in 440V-60Hz, 2800 rpm according to the required specifications for applications on ships.

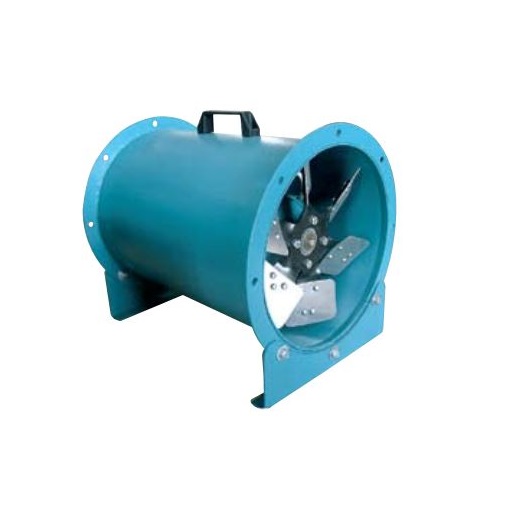

-With carrying handle and support base .

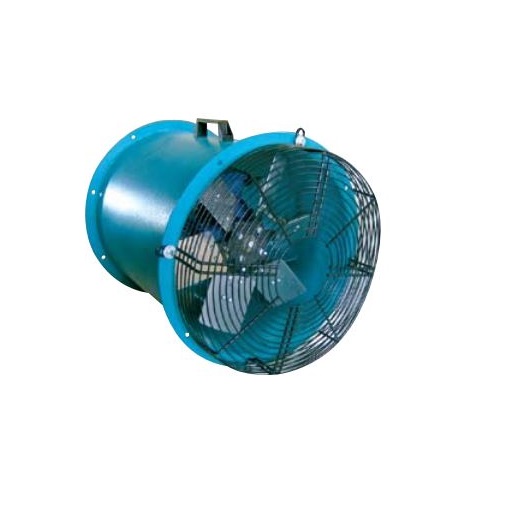

-With a protective mesh on the suction.
| TYPE | TURNS
rpm 50Hz 60Hz |
POWER
Hp |
DELIVERY
m3/h |
DIAMETER
0 mm |
| VAPB/2-300/150 |
|
1,5 | 3.500 | 300 |
