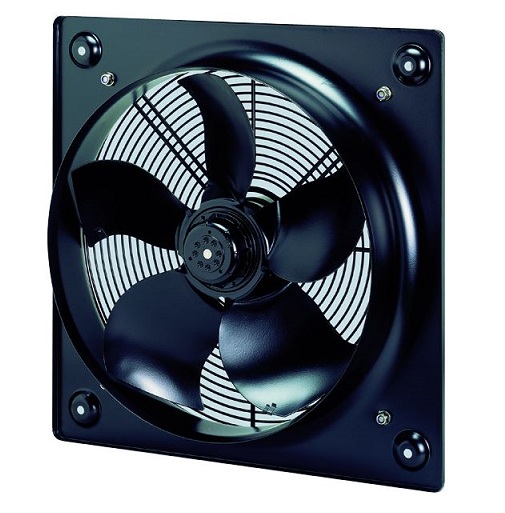

EXTERNAL ROTOR AXIAL FANS HXBR/4-630-A
EXTERNAL ROTOR AXIAL FANS HXBR/4-630-A
Description
EXTERNAL ROTOR AXIAL FANS HXBR/4-630-A
The unique design of the ventilator achieves maximum efficiency with extremely small thickness resulting in occupying the smallest possible installation space. Also the special design of the frame ensures low weight combined with maximum performance.
-
- The only ones in Europe with motor protection IP65.
- Category F for air temperatures from -40oC to +70oC.
- Suitable for industrial spaces, pigsties, poultry farms, greenhouses, dryers, warehouses etc..
- Possibility of variation with dimmer REB-5000W and inversion with dimmer REB-1R.
| TYPE | TURNS
rpm |
MAX. POWER ABSORPTION W | DELIVERY m3/h | OPERATING TEMPERATURE°C
min max |
DIAMETER 0mm | FRAME DIMENSION mm | dB(A) | WEIGHT kg |
| HXBR/4-630-A | 1455 | 1252 | 14.010 | -40 +40 | 630 | 800x8o0 | 67 | 24,0 |
