ASPEN Silent+ Mini White CONDENSATE REMOVAL PUMP
ASPEN Silent+ Mini White CONDENSATE REMOVAL PUMP
Request a Quote.
Add products to the shopping cart and send us the list to receive a quote.
Categories: CONDENSATION PUMPS, air conditioning
Tags: aspen, mini lime, pump, pump, condensate pump
Description

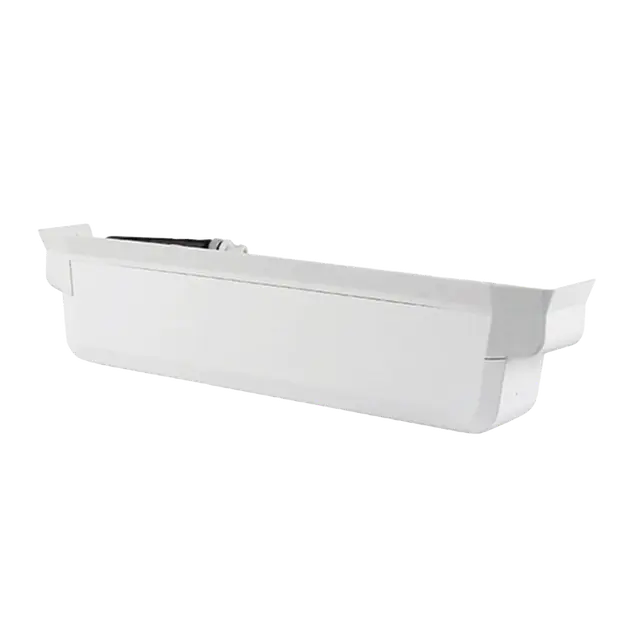

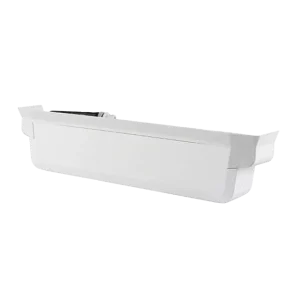

ASPEN Silent+ Mini White CONDENSATE REMOVAL PUMP
Incredibly quiet and particularly easy to install and maintain, the Silent+ Mini White is designed to fit on both sides of the vaporizer unit, offering maximum flexibility. The container is easily removed, making cleaning and maintenance easier, a fact that contributes to its long-term and reliable operation. It is suitable for applications up to 16 kW (54.000 Btu/h) and ideal for mini split wall systems. It is an excellent choice for domestic environments, where minimizing acoustic noise is critical.
Basic features:
- Extremely quiet operation
- Extremely fast installation
- Compact and discreet
- Removable tank
- Maximum flow:45L/h @ 0m height
- Max. pumping height:10m
- Minimum dB value(A) @ 1m:16dB(A)
- Power supply:230 VAC, 50-60 Hz, 0,18 A, 2.1 W
- Maximum unit efficiency:16kW (54,000Btu/h)
- Maximum ambient temperature:40°C (104°F)
- IP protection:IP24
- Entry o/d:16mm (5/8”) – 26mm (1″)
- Output o/d:Ø6mm (1/4”)
- Safety switch:5,0 A Contacts NO & NC
