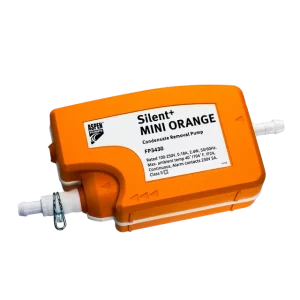

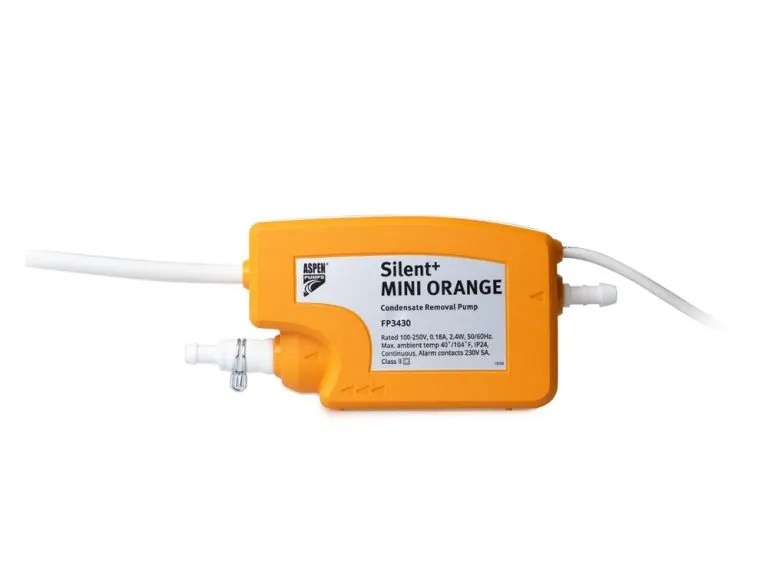

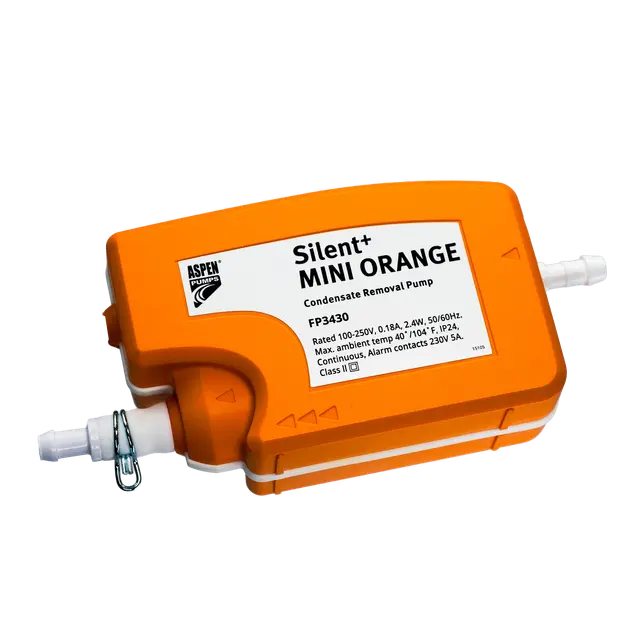

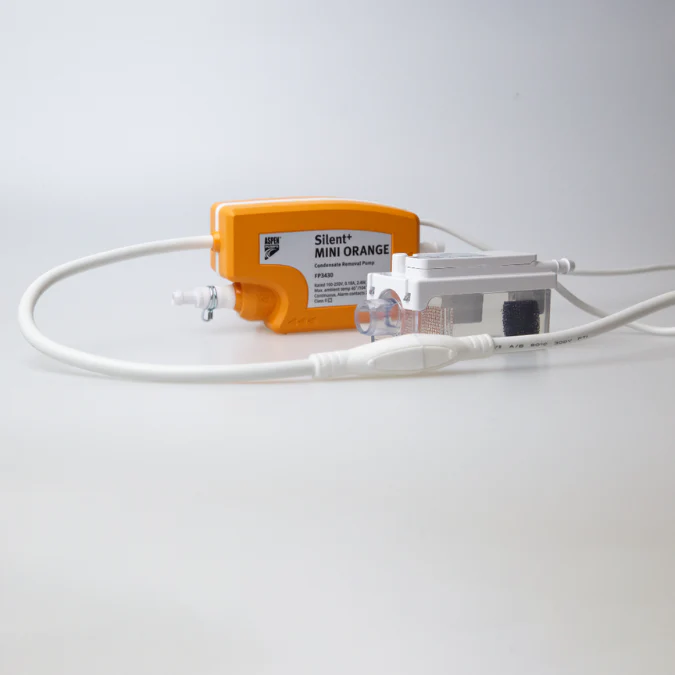

ASPEN Silent+ Mini Orange CONDENSATE REMOVAL PUMP

The No. 1 Orange mini pump in the world is now better than ever. Thanks to proven 5th generation technology, the Silent+ Mini Orange achieves extremely low noise levels of just 16dB(A)*, making it so quiet that no additional soundproofing or anti-vibration/anti-vibration materials are required. Advanced capacity sensor technology ensures intelligent and adaptive flow regulation, offering maximum performance and reliability. It is suitable for units up to 40kW / 136.000 Btu/h and can be used in ducted units, floor units and chassis, as well as in high wall split systems. It is an ideal choice for small commercial applications and residential installations.

Basic features:

• Proven 5th generation technology:
  Capacitance sensor &
  rotary diaphragm = Silence
  & force
• Low maintenance
• Plug & Play**
• 3 years warranty
• Maximum flow:35L/h @ 0m head
• Max. pumping height:10m
• Maximum suction lift:1.5m
• Minimum dB(A) @ 1m:16dB(A)*
• Power supply:100-250VAC, 0.18A, 2.4W,50/60 Hz
• Maximum unit efficiency:40kW / 136,000Btu/h
• Maximum ambient temperature: 40°C (104°F)
• Intellectual property protection:IP24
• Entry o/d:Ø16mm (5/8”)
• Output o/d:Ø6mm (1/4”)
• Safety switch:5,0 A Normally closed
