Aspen Mini Frame and Extension Kit

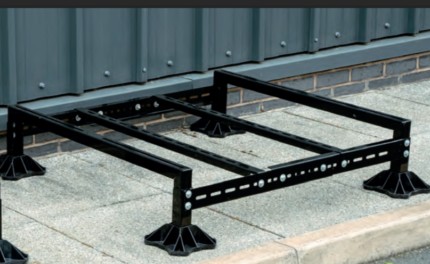

MINI FRAME: to support small condensing units and heat pumps. Ideal for placing on the ground or in environments
protected from the wind.

• Suitable for most
  mini split and heat pumps
• Easy to adjust to fit
  to any requirement
• Complete boxed kit with
  required accessories

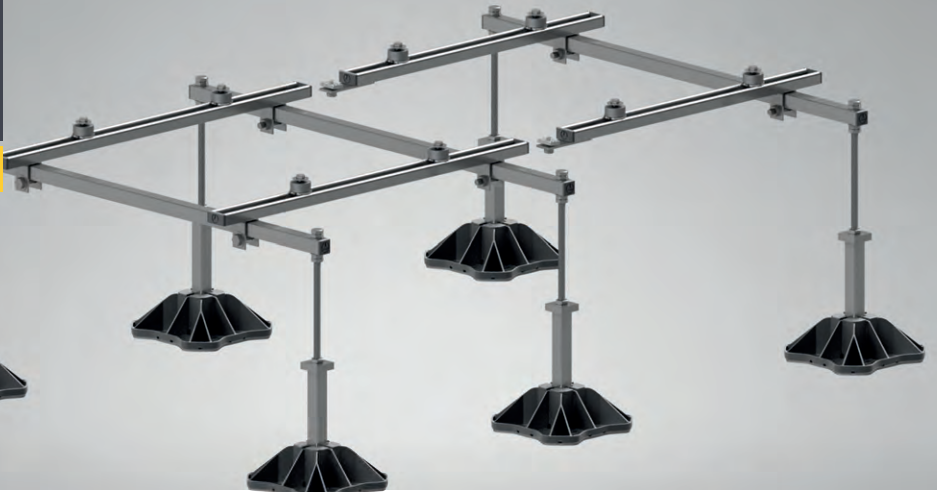

• Install multiple units
  with the extension kit.

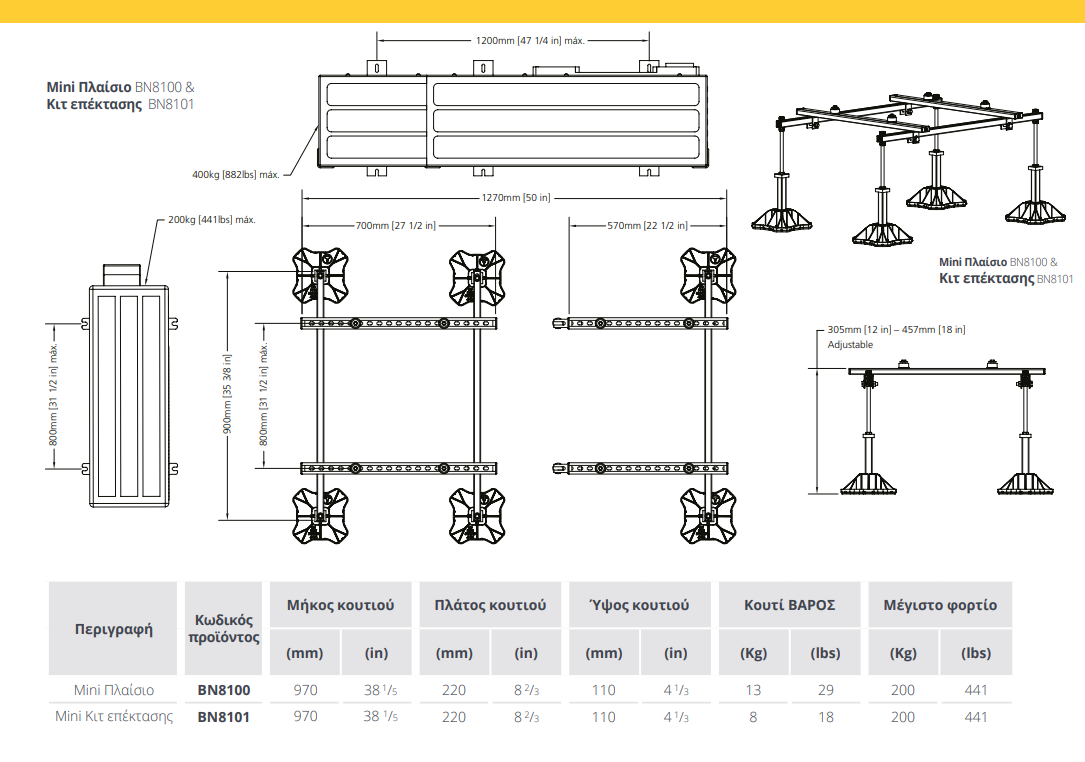

KIT INCLUDES:

Components Frame Ext.
200mm foot & mat × 4 × 2
900mm End bar × 2 × 1
700mm Cross bar × 2 –
570mm Cross bar – × 2
Unit fixing kit × 1 × 1
