ASPEN JAVAC Portable hoist
ASPEN JAVAC Portable hoist
Request a Quote.
Add products to the shopping cart and send us the list to receive a quote.
Description

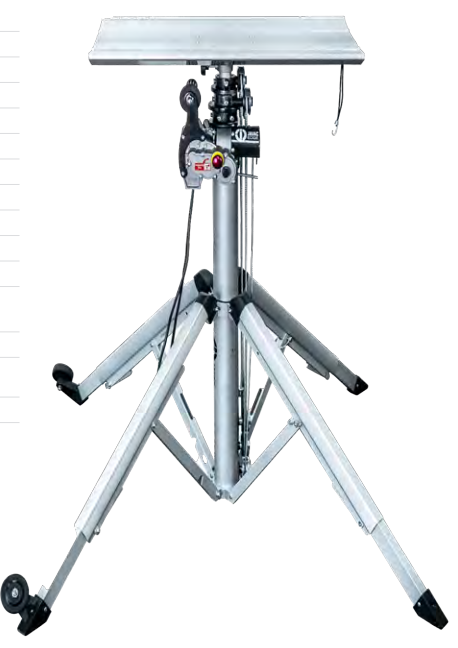

ASPEN JAVAC Portable hoist
The ultimate solution designed to help lift and place heavy machinery in the HVAC industry.
• The riser is suitable for use with condensers,
evaporators, conduits, air treatment units, piping and
many other uses
• With extendable legs, the broad platform base and the
its robust design, the lifter offers unparalleled
suitability and adaptability for almost all
HVAC lifting and mounting requirements
• Designed to withstand harsh conditions, allowing
you to work safely, confidence and efficiency
| Operating voltage | 220V ~ 240V @ 50/60Hz |
| Business Current | 4 Amp |
| Engine duty | S3 30% |
| Plug type | EU plug adapter and United Kingdom |
| Maximum load capacity | 130kgs (3.0m height) |
| Basic height | 1m |
| Lifting height | 3.69m |
| Standard platform | 75 x 44cm |
| Function size | 115 x 118cm |
| Control cable length | 4m |
| Power cord length | 2.7m |
| Ambient temperature | -5 °C in 45 °C |
| IP layer | IP43 |
| Packing box size | 102 x 28 x 33cm |
| Clean / Gross weight | 30,5 kilos (Machine 24 kilos + Platform 4,8 kilos) / 33 kilos |
| accessory | Manual handle |
| Security standard | IN 60204-1:2018 / IN THAT 12100:2010 |
| Compliance | WEEE / CE / UKCA |
| Description | Number |
| 240V Portable hoist | JAV-1353 |
| The kit includes: 1 x platform, 1 x telescopic mast, 1 x pulley with pulley cover, 1 x steel cable, 1 x engine and gearbox, 1 x sliding ring, 4 x legs, 2 x wheels, 1 x lever to select up or down, 1 x emergency stop button, 1 x activation button for the speed control, 1 x wheeled bag |
