Vibro-PB.F: Anti-vibration plasterboard wall-ceiling supports

Wall supports for the anti-vibration support of floating walls from dry construction. The use of these anti-vibration supports is recommended for walls with a sufficiently high height. In this way the dynamic stiffness of it increases.

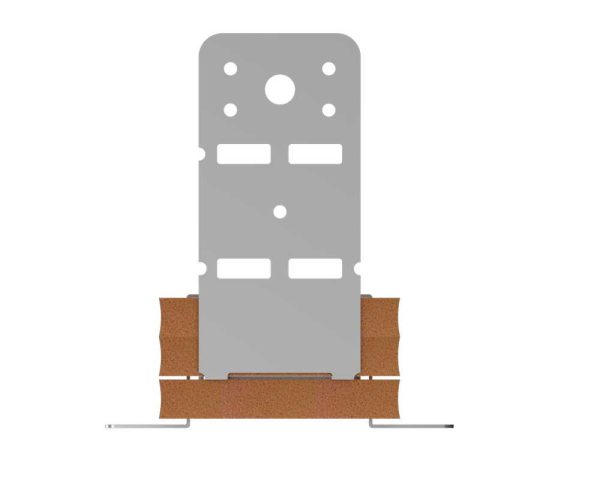

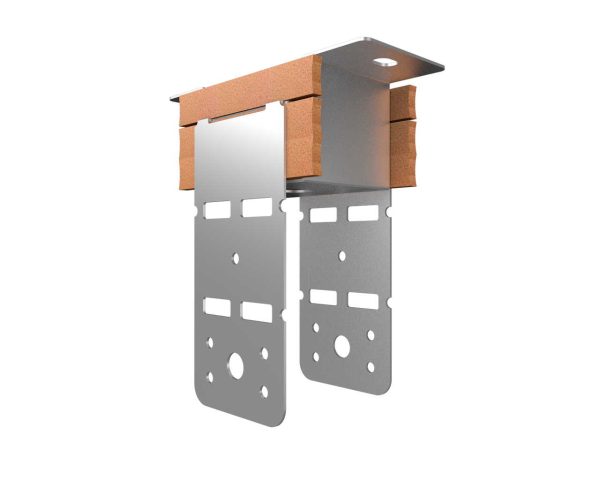

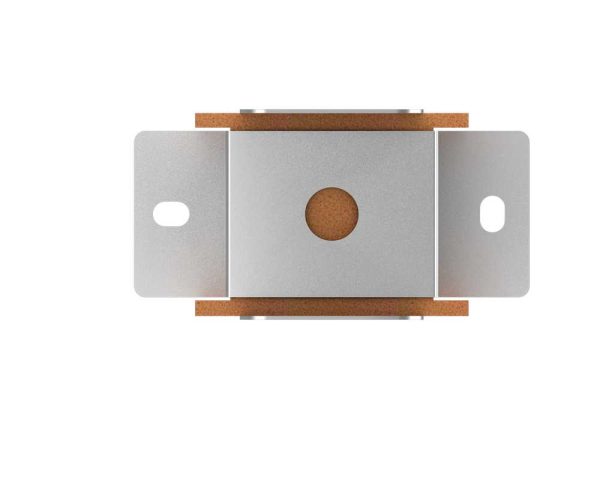

The use of shock absorbers Vibration-PB.F recommended for walls with a sufficiently high height. In this way the dynamic stiffness of it increases. Its clever construction with the insertion of an intermediate metal element allows the retention of both compressive and tensile forces. The insertion of this support prevents the creation of a sound bridge between two walls and in this way sound insulation is also achieved for stereo transmitted noise. Its clever construction with the insertion of an intermediate metal element allows the retention of both compressive and tensile forces. Fixing this to the post does not require the use of a through screw, it is enough to use common self-drilling screws that connect it to the side of the post. The intermediate anti-vibration element consists of semi-closed cell polyurethane foam (Regufoam). All diagrams and certificates for its mechanical behavior are available. At its base it has two oval holes for easy installation.

Selection Panel

Dynamic Characteristics

Peculiar frequency (to the maximum load) :
– 14 Hz (12.5mm thickness of foam material)

– 10 Hz (25mm thickness of foam material)
