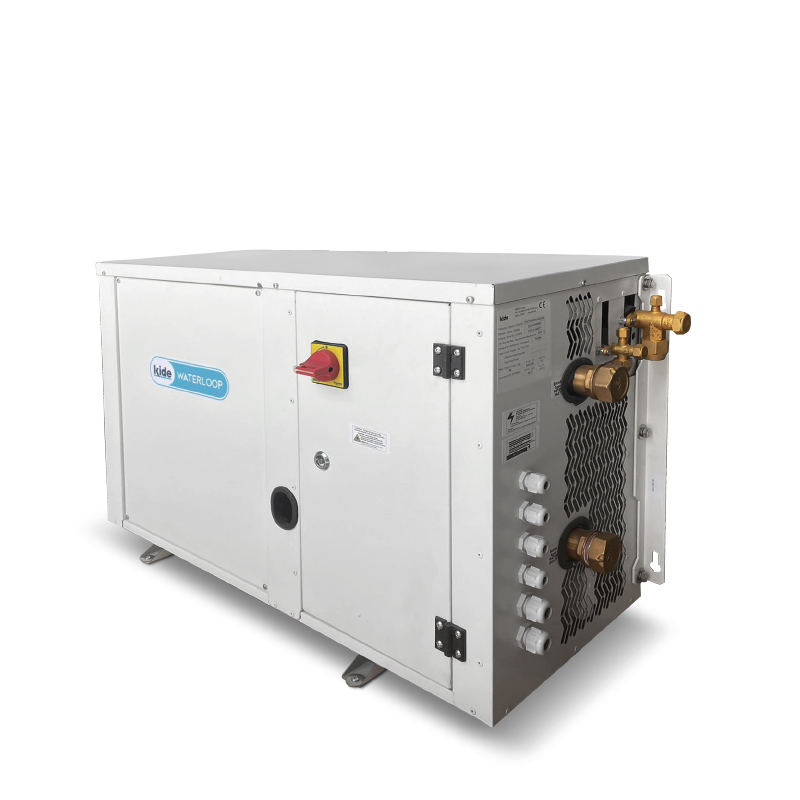

kide machine monoblock ESW2040H5G maintenance performance 10600W ceiling R-455A

Monoblock kide.Professional cooling equipment ,ceiling , for cold storage rooms, which have a small volume.

Series -200. Operating limits -10 Celcious εως -15Celcious

Model ESW2040H5G. Closed type compressor.

Cooling performance -10600W

For chamber volume 190-230m3 (in a hot climate – in a cold climate )

Power supply 400V/3/50HP

Compressor -4hp -3kW

Refrigerant – R-455A<2,55

Consumption 6.6A

Maximum load 10.9A

condenser -evaporator 4700m3

Weight -135 kilos

Pre-charged with refrigerant.
Water* or water + 30% ethylene glycol.
Power supply 230 V-I-50 Hz ή 400 5-3-50 Hz (For other trends, please contact us).
Hermetic scroll compressor on anti-vibration mounts.
Condenser in stainless steel with welded plate.
Fluid receiver.
Ceramic filter drier.
Liquid sight glass.
High and low pressure switches.
Service valves (series 200).
Pressure switch valve.
Hydraulic condensing circuit in copper pipe with screw connections.
Electric control panel with differential and magnetothermal protection.
Electronic regulation with remote control of the evaporator and the compressor, with temperature sensor.
Air exhaust fan.

OPTIONAL FOR kide MACHINES (Request delivery)

Winter Kit. Exchange system / failure for two units.
Synchronized defrost system for two units.
Evaporator condensate pump.
Anti-corrosion treatment on the evaporator coil.
Voltage protector (single phase version)
Time control.
Humidifier external to the equipment and control.
Anti-corrosion treatment for condenser unit furniture.
Monitoring and control system.

XWEB remote management.
