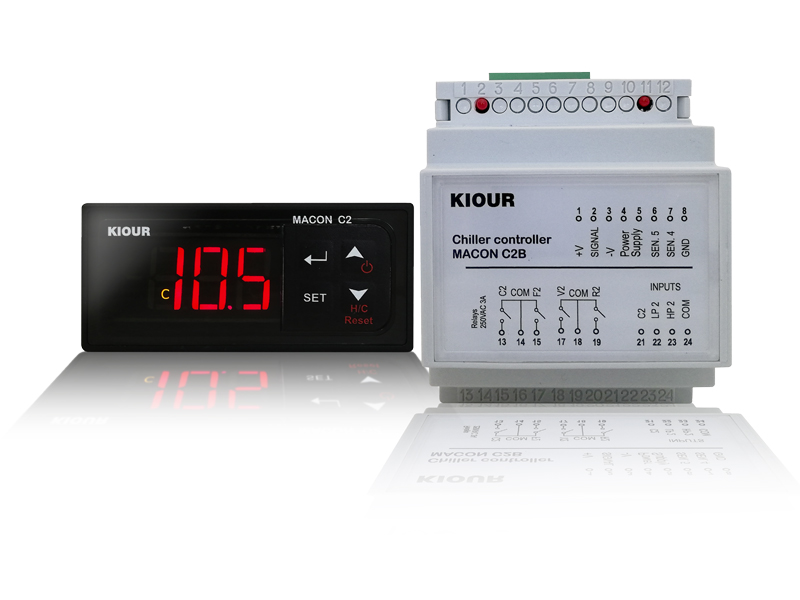

KIOUR MACON_C2/C2B FOR CHILLER / HEAT PUMP

CHILLER /heat pump control device 1 the 2 of compressors with analog output 0-10V

• Application in refrigeration machines and use as a heat pump 2 κυκλωμάτων
• Control 1 the 2 compressors
• Επιτήρηση παγετού σε κατάσταση OFF όπου μπαίνει μπροστά η αντλία
• 5 PTC temperature sensors scale -50÷99.9ºC, where the 3 sensors are for the first circuit, entrance / water outlet and de-Frost control and the 2 for the second circuit,water outlet and deFrost control
• Δεκαδική απεικόνιση θερμοκρασίας / Accuracy 0.5ºC
• 9 digital inputs, 6 for the first circuit and 3 for the second circuit
• Serial input 5pin connector for connecting to the cloud and the CORTEX platform for monitoring - recording and managing the thermostat from the mobile, the tablet or from any computer, send email and push notification in case of alarm
• 10 outputs to 250VAC 5A relay
• 1 analog output 0-10 Volt
• Cooling - heating function / Defrost function
• ON/OFF device button
• High-low pressure alarm in the cooling circuits
• Serial input 5pin connector for connecting to the cloud and the CORTEX platform for monitoring - recording and managing the thermostat from the mobile, the tablet or from any computer, send email and push notification in case of alarm
• Maximum power 5Watt / device
• το MACON_C2 μοντάρεται σε πρόσοψη πίνακα / Dimensions 28x70x75mm

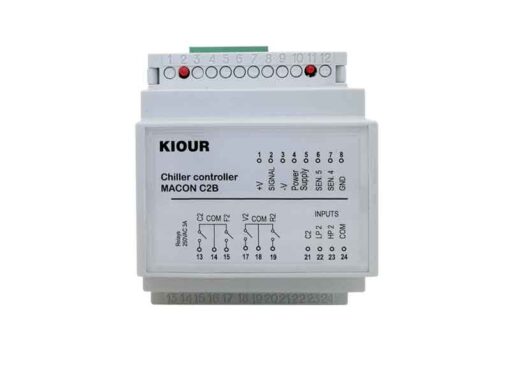

• το MACON_C2Β μοντάρεται σε ράγα ωμέγα / Dimensions 70x90x65mm
• Συνδεσμολογία με κλέμες 28-16 AWG 1.5mm2
• Τροφοδοσία 24VAC/DC ± 10% 50/60Hz 5W
• Storage temperature -20 ÷ +80ºC
• Βαθμός στεγανότητας ΙΡ65 στην πρόσοψη
