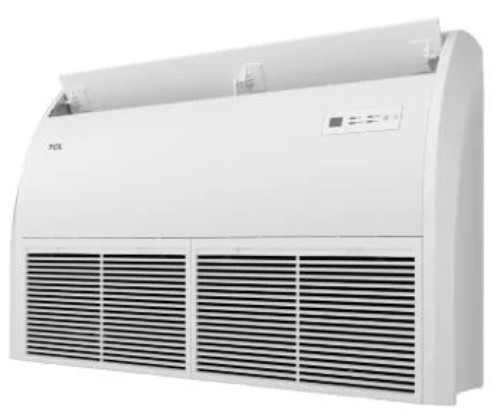

TCL ΚΛΙΜΑΤΙΣΤΙΚΟ ΤΥΠΟΥ Δαπέδου-Οροφής TCC-36ZHRH/DV(04)
TCL ΚΛΙΜΑΤΙΣΤΙΚΟ ΤΥΠΟΥ Δαπέδου-Οροφής TCC-36ZHRH/DV(04)
| Manufacturers |
|---|
Description
TCL ΚΛΙΜΑΤΙΣΤΙΚΟ ΤΥΠΟΥ Δαπέδου-Οροφής TCC-36ZHRH/DV(04)
| Μοντέλο TCL | TCC-36ZHRH/DV(04) |
| Nominal cooling efficiency |
|
|
| Rated heating efficiency |
|
|
| Phdesignc | W | 10.550 |
| SEER | W/W | 6,1 |
| Energy Class Cooling | A ++ |
| Phdesignh (Middle Zone) | W | 8.500 |
| SCOP(Middle Zone) | W/W | 4,0 |
| Heating energy class (Middle Zone) | A + |
| Average Annual Energy Consumption (KWh/a)Cooling | 640 |
| Heating (middle zone) | 2930 |
| Operating temperature range | °C | 16-31 |
| Ambient temperature range |
|
Cooling:-15-58/heating:-25-27 |
| Air supply and Noise level |
| Indoor unit air supply | m3/h | 2000 |
| Sound pressure level (S/H/M/L/Silent) | Indoor | dB(A) | 55/51/48/45/42 |
| Sound power level(Typical conditions) | External | dB(A) | 57 |
| TCL Electrics |
| Electrical supply/ Connection |
|
| Electrical supply side | External |
| Power Supply Voltage Range | (V) | 176~265 |
| Communication cable | 3×1,5mm2 |
| Power supply cable | Strands x Cross Section |
|
| Maximum Current | A | 21 |
| Characteristics of TCL cooling network |
| Refrigerant type/quantity/GWP/CO2 equivalent | R32/1,7kg/675/1,148τόνοι |
| Pipe cross-section |
|
|
| Maximum length | m | 75 |
| Maximum altitude difference | m | 30 |
| Prefilling | m | 5 |
| Completion | gr/m | 40 |
| Dimensions of TCL units |
| Net dimensions (M x Y x B) |
|
|
|
| Net weight |
|
|
