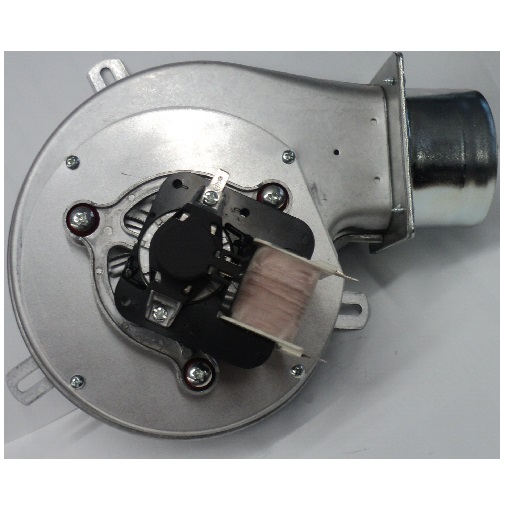

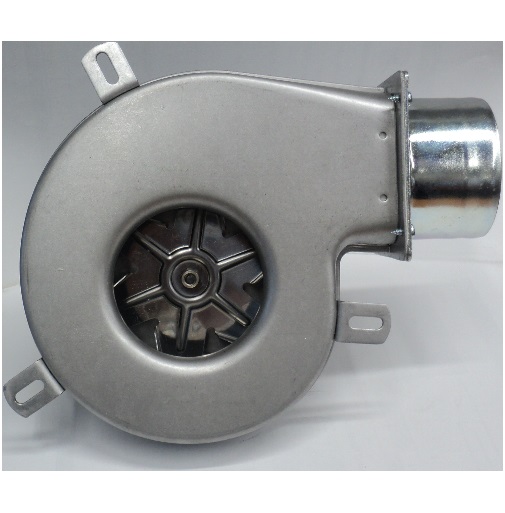

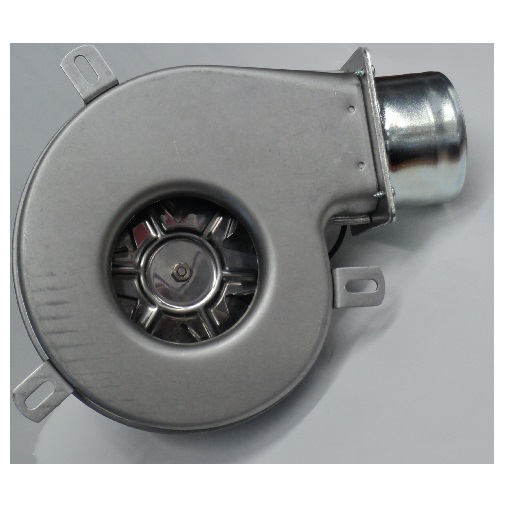

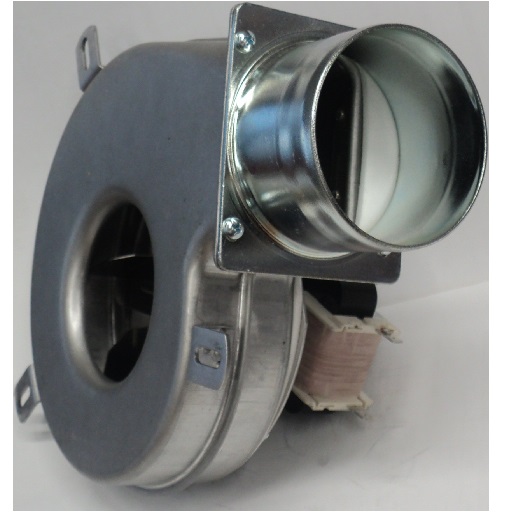

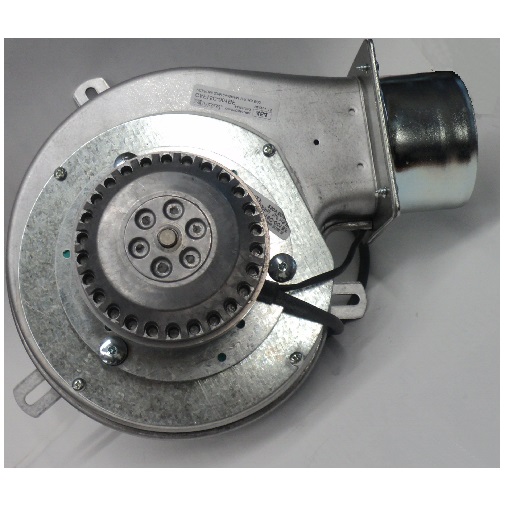

CENTRIFUGAL HOT AIR BLOWERS CAF15Y-012BF-00
CENTRIFUGAL HOT AIR BLOWERS CAF15Y-012BF-00
Description
CENTRIFUGAL HOT AIR BLOWERS CAF15Y-012BF-00
-
CAH SERIES
- Centrifugal ventilators-blowers suitable for extracting flue gases.
- 230V 50Hz.
- CAF-15C: 32W.
- CAF-15Y: 39W.
- CAF-15Y 112BSC: 40W.
- Resistance to room temperature 90TheC.
- For a maximum temperature of up to +280TheC.
| TYPE | POWER W | REVOLUTIONS rpm | WING DIAMETER mm | CURRENT A | CLASS | DELIVERY m3/h | STATIC PRESSURE Pa |
| CAF15Y-012BF-00 | 40 | 2600 | 150 | 0,35 | H | 170 | 300 |
