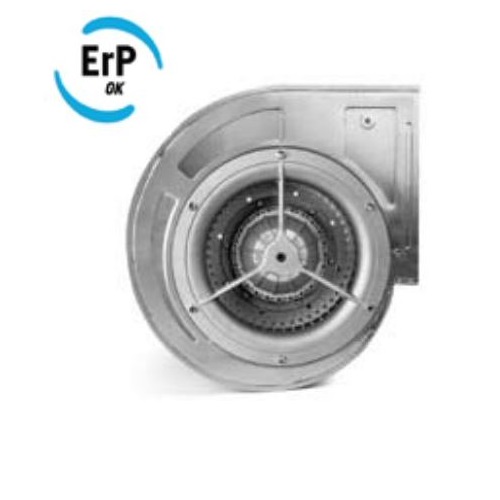

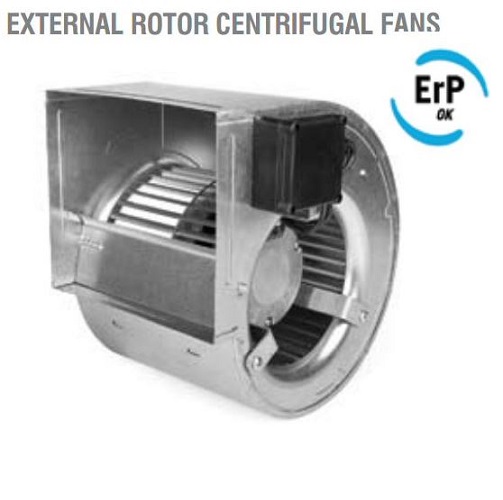

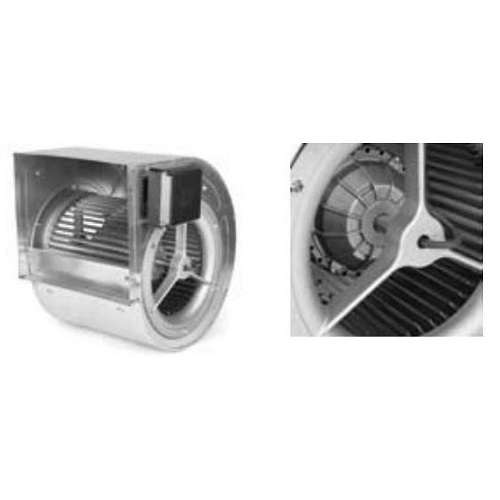

DOUBLE SUCTION FANS - EXTERNAL ROTOR SINGLE PHASE CBM-12/12 750W 6P RE VR
DOUBLE SUCTION FANS - EXTERNAL ROTOR SINGLE PHASE CBM-12/12 750W 6P RE VR
Description
DOUBLE SUCTION FANS - EXTERNAL ROTOR SINGLE PHASE CBM-12/12 750W 6P RE VR
CBM-RE SERIES
- 230V-50/60Hz.
- Double suction with dense sirocco impeller.

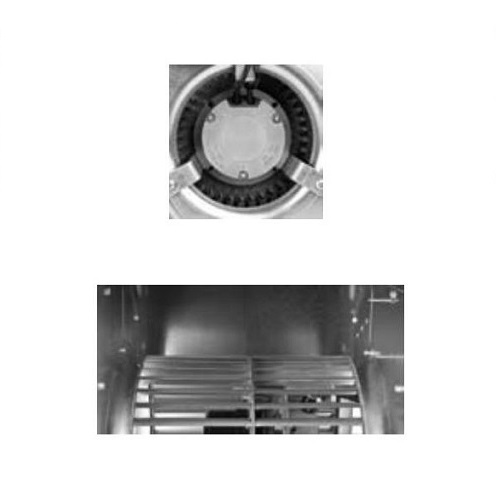

- With external rotor motor (motor integrated with the impeller)
- Shell and impeller made of galvanized sheet steel.
- The series includes models 4 and 6 poles.
- IPP44, class F (models 7/7 & 7/9).
- IPP55, class F (Models 9/7 & 12/12).
REGULATION: REB-E 5000C
| TYPE | ΙΣΧΥΣ W | ΣΤΡΟΦΕΣ rpm | ΦΤΕΡΩΤΗ mmm | Hz | ΠΥΚΝΩΤΗ | ΡΕΥΜΑ A | ΠΑΡΟΧΗ m3/h | ΘΕΡΜΟΚΡΑΣΙΑ °C |
|
| CBM-12/12 750W 6P RE VR | 750 | 900 | 320/320 | 50 | 20/450 | 5,3 | 5.240 | +40 |
|
