AXIAL VENTILATORS OF CYLINDRICAL SECTION TUB/4-350/018
AXIAL VENTILATORS OF CYLINDRICAL SECTION TUB/4-350/018
Description

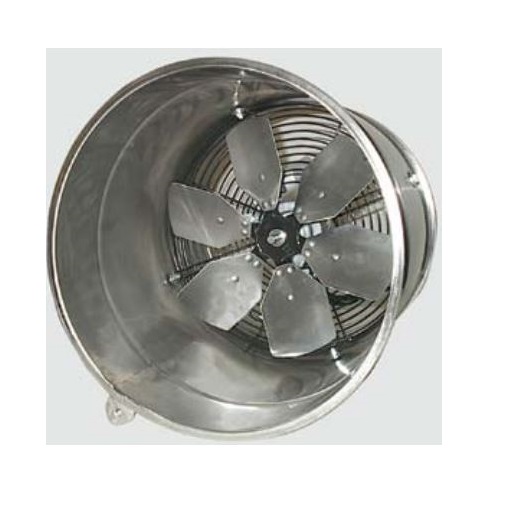

AXIAL VENTILATORS OF CYLINDRICAL SECTION TUB/4-350/018
- With motor 230V/50Hz , IP44, Category B.
- Case made of galvanized steel sheet.

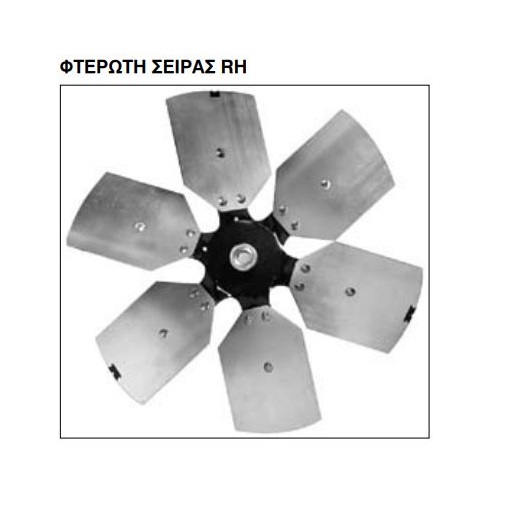

- 6-wing aluminum wing impeller PH.
- Suitable for greenhouses.
- Setting with RΕΒ – 5000W.
- It also cooperates with ON / O remote controlFF KF-22.
- Upon request: with case from INOX (type ΤUΒΙ). With protective grid. With impeller from Φ350mm to Φ630mm. Cylinder length on request.
| TYPE | REVOLUTIONS rpm | POWER W | DIAMETER 0mm | ΔΙΑΜΕΤΡΟΣ Φτερωτής 0mm | DELIVERY m3/h |
| TUB/4-350/018 | 1400 | 150 | 400 | 350 | 4.000 |
