AXIAL VENTILATORS OF CYLINDRICAL SECTION BELT DRIVEN TTT/4-1000-H N
AXIAL VENTILATORS OF CYLINDRICAL SECTION BELT DRIVEN TTT/4-1000-H N
Description

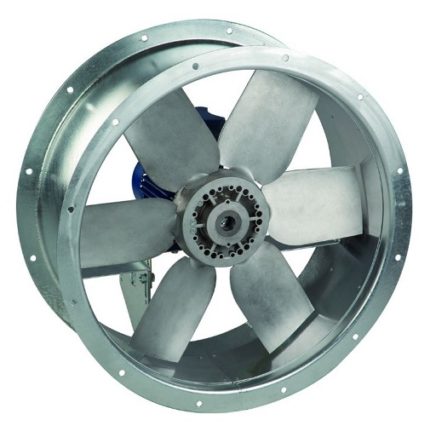

AXIAL VENTILATORS OF CYLINDRICAL SECTION BELT DRIVEN TTT/4-1000-H N
- 230/400V-50Hz or 400V-50Hz out-of-flow motor with belt and pulley.
- Motor protection IP55, class F, with thermal protection.
- Aluminum impeller
- Axial cylindrical air duct fans.
- Indirect movement through belts and pulleys.
- With thermal protection.
- With an easy adjustment wreath with the airway.
- Aluminum impeller coated with epoxy polyester paint.
Easy cleaning or replacement of motor or impeller without disassembly from the air duct.
APPLICATIONS: Suitable for extracting corrosive and explosive gases up to +120 ℃
REGULATION : With INVERTER.
ON REQUIREMENT : Explosion-proof type
| TYPE | TURNS
rpm |
POWER
W |
DELIVERY
m3/h |
DIAMETER
0mm |
dB(A) | WEIGHT
kg |
| TTT/4-1000-H N | 1450 | 11000 | 59.000 | 1000 | 85 | 232 |
