RODIGAS Base for MT tile roof 630
RODIGAS Base for MT tile roof 630
| Manufacturers |
|---|
Description

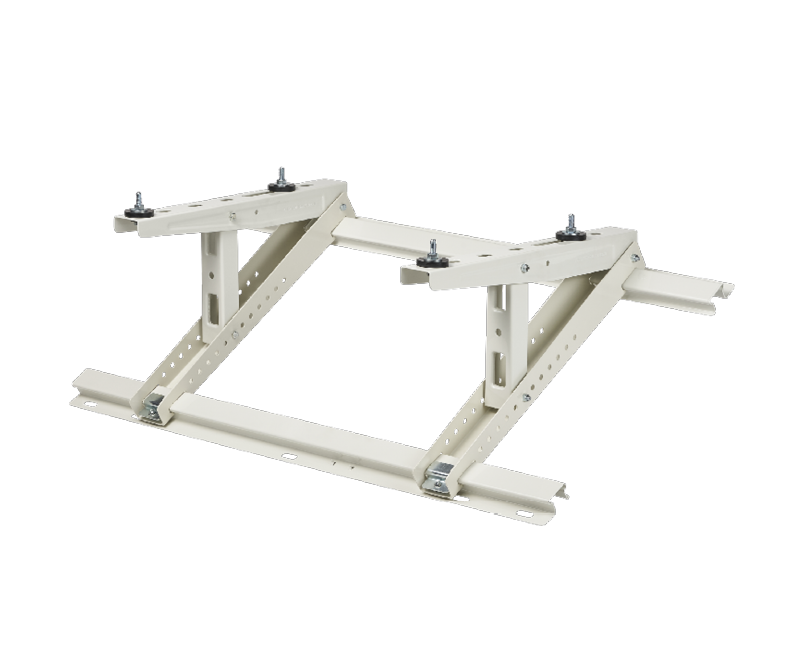

RODIGAS Base for roof with MT tiles 630
Roof mounting system for outdoor unit air conditioning in electro-galvanized steel and painted
Standards
Materials and Processing
Material electro galvanized steel
Treatment epoxy resins in polyester for outdoor use
Colour Ral 9002
Slope Minimum 9° – Maximum 45°
Cargo capacity
Cargo capacity 140 kilos
Test load 420 kilos
Models and Measures
Box dimensions
Dimension 980x85x980 mm.
Packing carton
Tare 5 kilos
Quantity 1
Pallet dimensions
Dimension 106x106x100 cm.
Pallet weight 550 kilos
Quantity 108
additional information

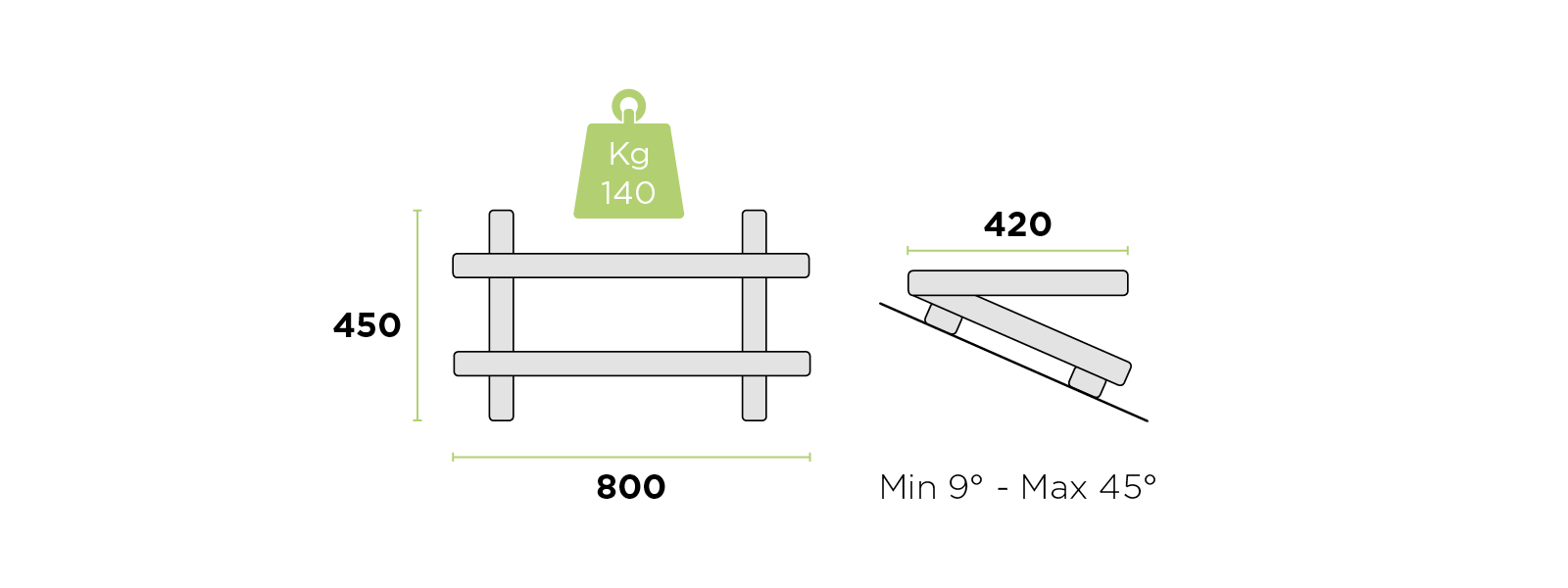

DIMENSION MM 420
ROD LENGTH 800
ABILITY 140
