UNIVERSAL kide REFRIGERATORS WITH KEYS IN 60 mm-80mm-100 mm INSULATION THICKNESS
Kide chambers universal series with zero cooling loss lashing system and connection to 5 steps

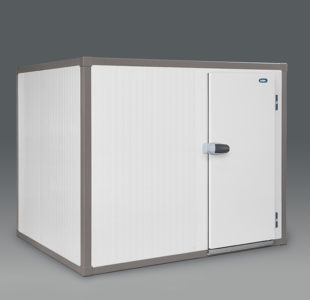

KIDE UNIVERSAL MODULAR COLD ROOM represents a new generation in modular cold rooms, thanks to its many advantages.
Fully interchangeable panels
Easy to assemble
Easy expansion in any direction
More practical for storage and transportation
Features – Easier and faster assembly
Assembling the Cold Room has been made simpler by unifying the design, making the panels interchangeable.
Any panel can be used for wall or ceiling position, as everything is integrated into an exclusive system where the panels can be assembled in any position. Assembly is quick thanks to a simple hex key supplied with the Cooler.
This advantage means significant time and cost savings.
IT HAS NEVER BEEN EASIER TO EXPAND A REFRIGERATOR
The UNIVERSAL MODULAR COLD ROOM is extremely easy to expand in size:
a pre-assembled cold chamber can be easily enlarged in any direction. The UNIVERSAL series means flexibility at its best. A minimum number of panels stored , can provide a maximum number of modular Cold Rooms.
MORE COMPACT, EVEN WHEN STORED
Another advantage of the UNIVERSAL MODULAR COLD ROOM is that, because the panel format has been consolidated, can be compactly packed, facilitating its transport and handling. In addition, reducing the number of reports means optimizing the available stock in your warehouse… and saving space.
Panel insulation characteristics
Rigid polyurethane foam without CFC or HCFC.
Density: 40 kg/m3(+3 -0kg/m3)
U-Value:
PANEL 6 no = 0.38W/m2 ºC
PANEL 8 no = 0.28W/m2 ºC
PANEL 10 no = 0.23W/m2 ºC
FLOOR
Pedestrian floor only – S8
For pedestrian use only. Internal thickness 1mm
non-slip plastic laminated sheet.
Reinforced floor- M9
Reinforced floor ideal for pedestrians and manual
trolley use. Internal finish reinforced with anti-slip
birch plywood and phenolic resin.
Reinforced laminated floor
Anti-slip aluminum steel 2/4.
Non-slip steel 3/5 galvanized.
FRIDGE DOOR
Hinged opening door 0.8m x 1.9m, attached to a vertical panel.
ACCESSORIES INCLUDED
– Sanitary corners on all models for vertical internals, the ceiling and the floor.
– Temperature equalization valve in the freezer ( Cold rooms with 100 mm thickness )
– “U” floor pieces in cold rooms without a floor.
