MITSUBISHI SRK25ZSP-W1 SPLIT TYPE WALL AIR CONDITIONING UNIT
MITSUBISHI SRK25ZSP-W1 SPLIT TYPE WALL AIR CONDITIONING UNIT
Request a Quote.
Add products to the shopping cart and send us the list to receive a quote.
Description
MITSUBISHI SRK25ZSP-W1 SPLIT TYPE WALL AIR CONDITIONING UNIT
| INDOOR UNIT | SRK25ZSP-W1 |

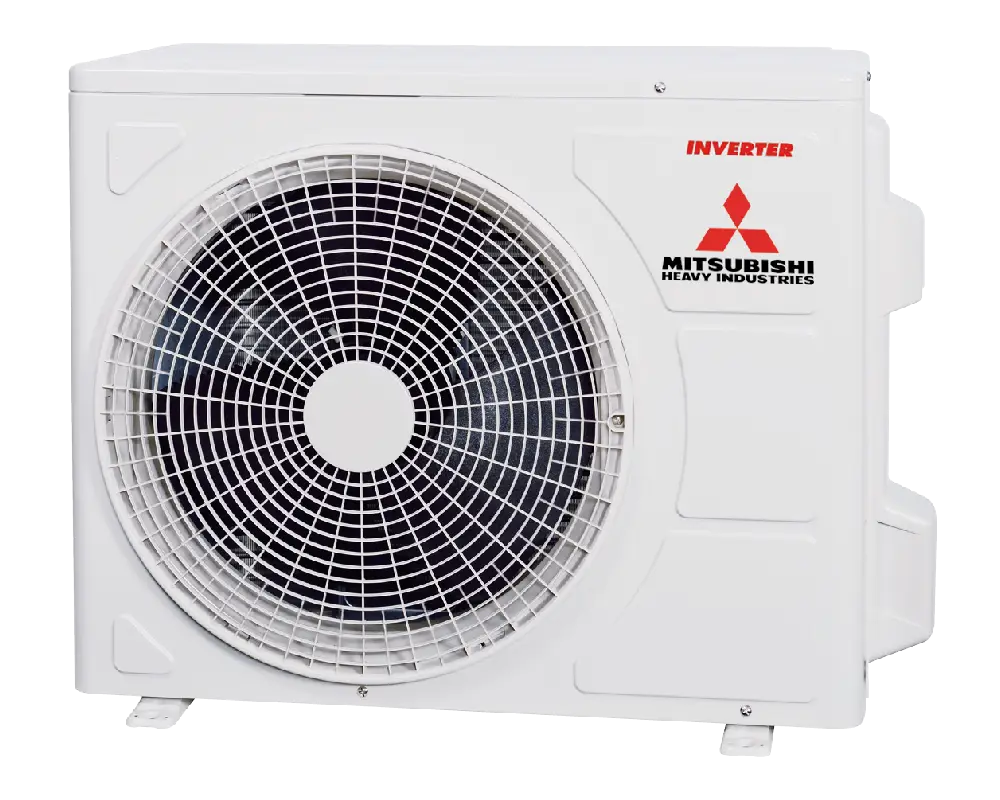

| OUTDOOR UNIT | SRC25ZSP-W1 |
| POWER SUPPLY | SINGLE PHASE,220-240,50Hz |
| RATED COOLING EFFICIENCY | Nominative(Min.~Max.) |
|
|
| NOMINAL HEATING EFFICIENCY | Nominative(Min.~Max.) |
|
|
| POWER CONSUMPTION | COOLING/HEATING | kW | 0.710/0.690 |
| SEER | MIDDLE ZONE | W/W | 6.9 |
| ENERGY CLASS | COOLING-MIDDLE ZONE | A ++ |
| SCOP | MEDIUM/HOT ZONE | W/W | 4.1/5.2 |
| ENERGY CLASS | HEATING-MIDDLE/HOT ZONE | A+/A+++ |
| MAX. OPERATING CURRENT | A | 9 |
| Noise level (ACOUSTIC POWER ) |
|
|
|
| Noise level(SOUND PRESSURE) |
|
|
|
| Air flow |
|
|
|
| EXTERNAL DIMENSIONS |
|
HeightxWidthxDepth |
|
|
| NET WEIGHT | Internal / External | kg | 7.0/22.0 |
| REFRIGERANT | TYPE/GWP | R32/675 |
| REFRIGERANT | FILLING | kg | 0.480(for up to 10m of piping) |
| CHARACTERISTICS OF COOLING NETWORK |
|
|
|
| ALTITUDE DIFFERENCE | Outdoor unit high/low(vertically) | m | Max. 15/Max. 15 |
| CABLE CROSS SECTIONS | Communication-Delivery/Security | 4*1,5mm2-3*1,5mm2/16A |
| OUTDOOR TEMPERATURE RANGE OF OPERATION |
|
|
PRODUCT INFORMATION:
-
Economy mode The temperature and humidity of the room are monitored through a sensor for automatic operation control. Combined with the motion sensor, the system allows saving energy while maintaining comfort.
-
Jet Air Technology Airflow is regulated with the same vane technology as that of jet engines, which produces a strong but efficient airflow.
-
Fuzzy AutoUsing fuzzy logic algorithms, the unit automatically determines the operating mode and temperature setting and adjusts the frequency of the inverter.
Product Catalog
TECHNICAL BROCHURE MANUAL
