TOYOTOMI HOME AIR CONDITIONING AKIRA 24
TOYOTOMI HOME AIR CONDITIONING AKIRA 24
Request a Quote.
Add products to the shopping cart and send us the list to receive a quote.
TOYOTOMI HOME AIR CONDITIONING AKIRA 24
Design Load (Pdesign)
Cooling Design Load (Pdesignc) 6,7 kW
Warm Zone Heating Design Load (Pdesignh) 5,3 kW
Middle Zone Heating Design Load (Pdesignh) 7,2 kW
Refrigeration / Thermal Performance
Cooling* Performance 24.908 Btu/h
7,3 kW
Performance Range 6.142-25.249 Btu/h
1.8-7.4 kW
Heating Performance 24.908 Btu/h
7,30 kW
Performance Range 6.142-25.249 Btu/h
1.8-7.4 kW
Seasonal Performance Rating
Cooling (Pdesignc) SEER 6.9
Cooling Energy Class A++
Heating (Pdesignh) Medieval SCOP 4.2
Mid Season Heating Energy Class A+
Warmer Season SCOP 5.4
Hot Season Heating Energy Class A+++
Electrical Characteristics
Current Voltage/Frequency 220-240/50/1 V-Hz-Ph
Cooling (Pdesignc) Annual Consumption (QCE) 340 kWh/a
Heating (Pdesignh) Average Annual Consumption (WHEE) 1766 kWh/a
Annual Hot Season Consumption (WHEE) 1866 kWh/a
Yields
Dehumidification 3,1 L/h
Indoor Unit Air Supply 1300/1200/1105/1010/940/870/580 m3/h
(SHi/Hi/Mhi/MLo/Mi/Lo/Slo/SS)
Indoor Unit Sound Power – Cooling 62/55/52/48/45/42/37 dB(A)
(SHi/Hi/Mhi/M/MLo/Lo/Slo/SS)
Indoor Unit Sound Power – Heating 62/57/54/50/47/43/37 dB(A)
(SHi/Hi/Mhi/M/MLo/Lo/SLo)
Indoor Unit Noise Level – Cooling 50/46/43/39/37/34/27 dB(A)
(SHi/Hi/Mhi/M/MLo/Lo/Slo/SS)
Indoor Unit Noise Level – Heating 47/42/39/36/33/29/25 dB(A)
(SHi/Hi/Mhi/M/MLo/Lo/SLo)
External Unit Sound Power (Hi) 64 dB(A)
Outdoor Unit Noise Level (Hi) 53 dB(A)
Dimensions and Weight

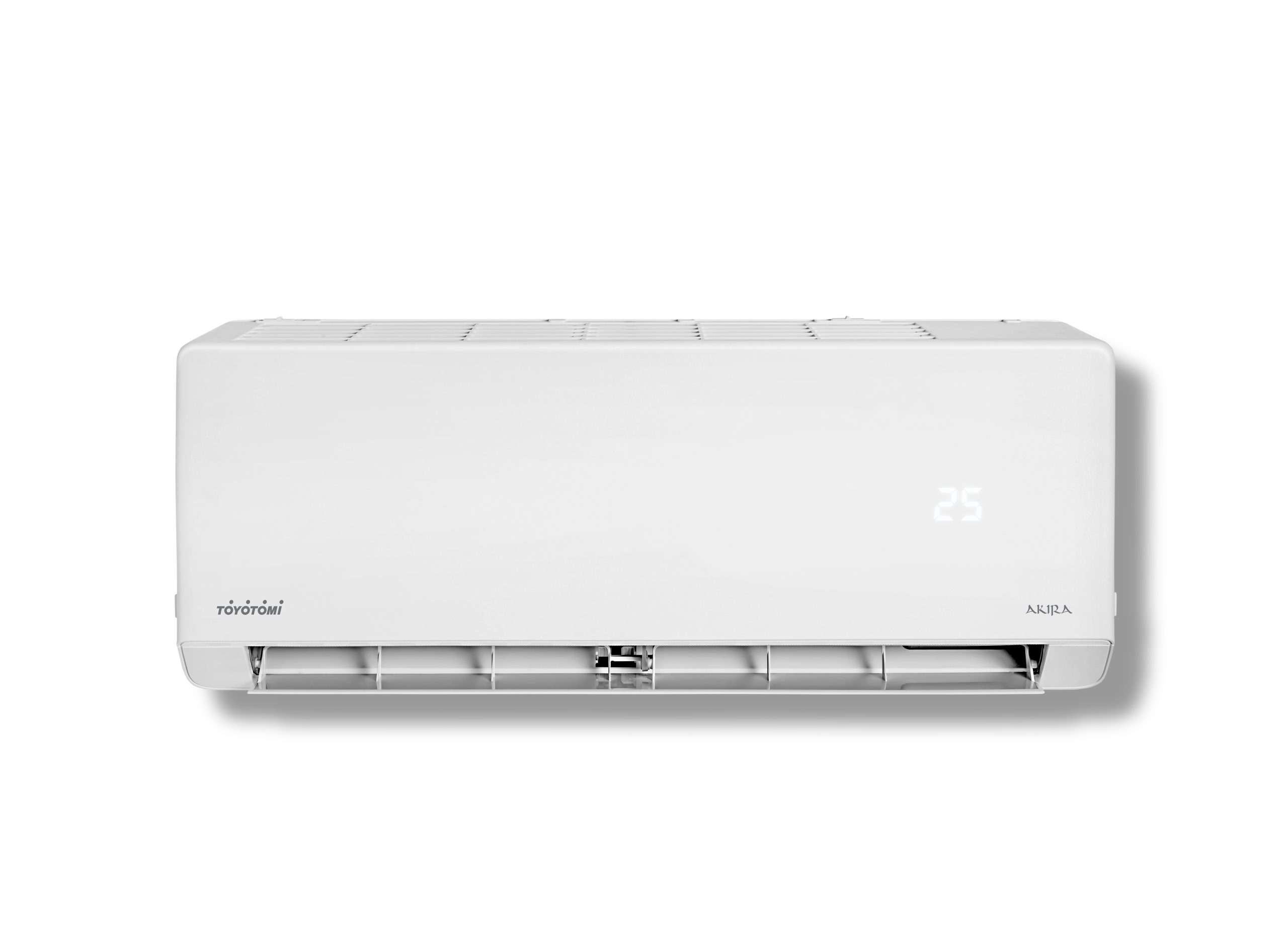

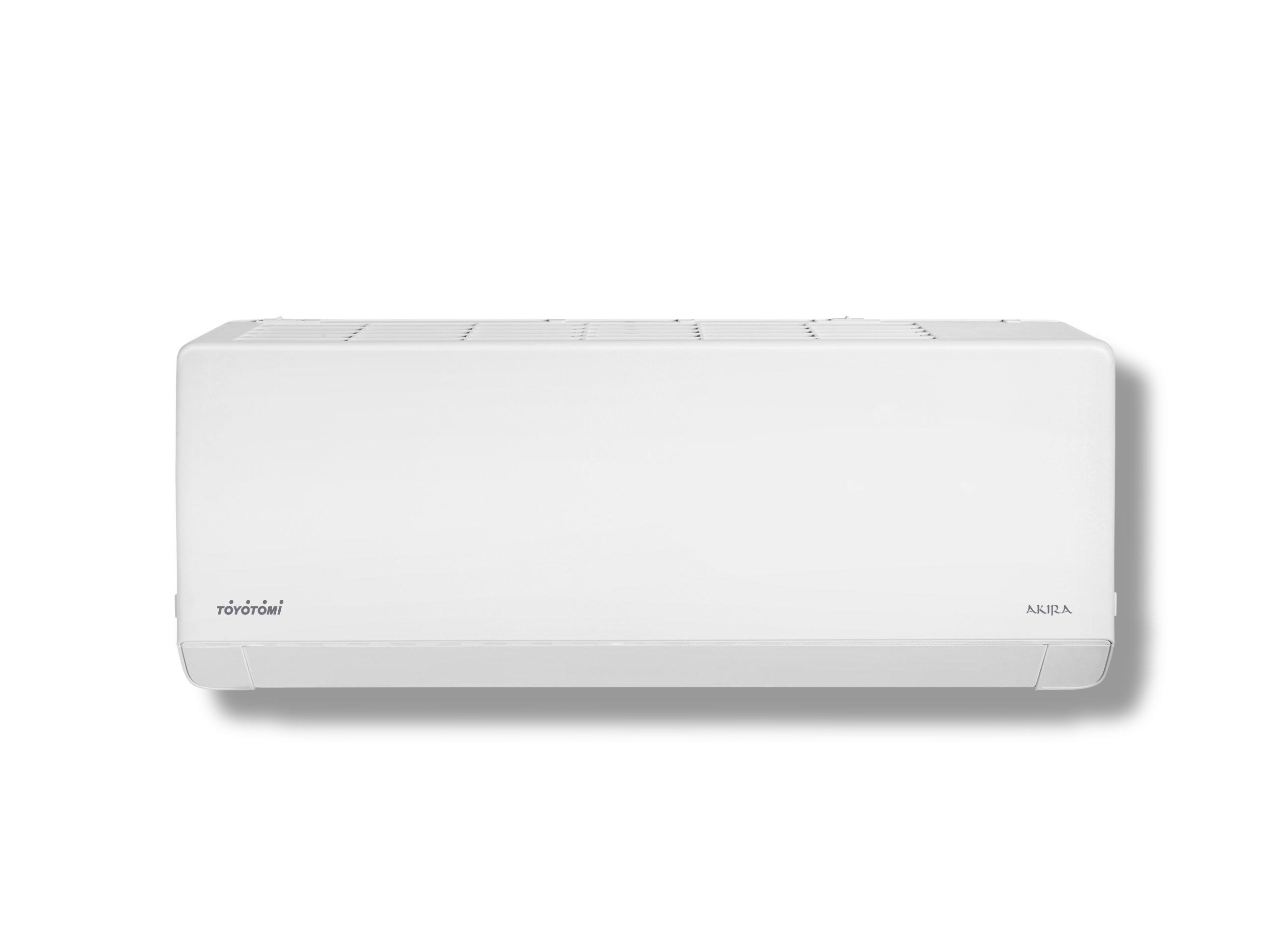

Indoor Unit Dimensions (P*Y*B) 1140x332x230 mm
Net/Gross Baros 13/17 kg

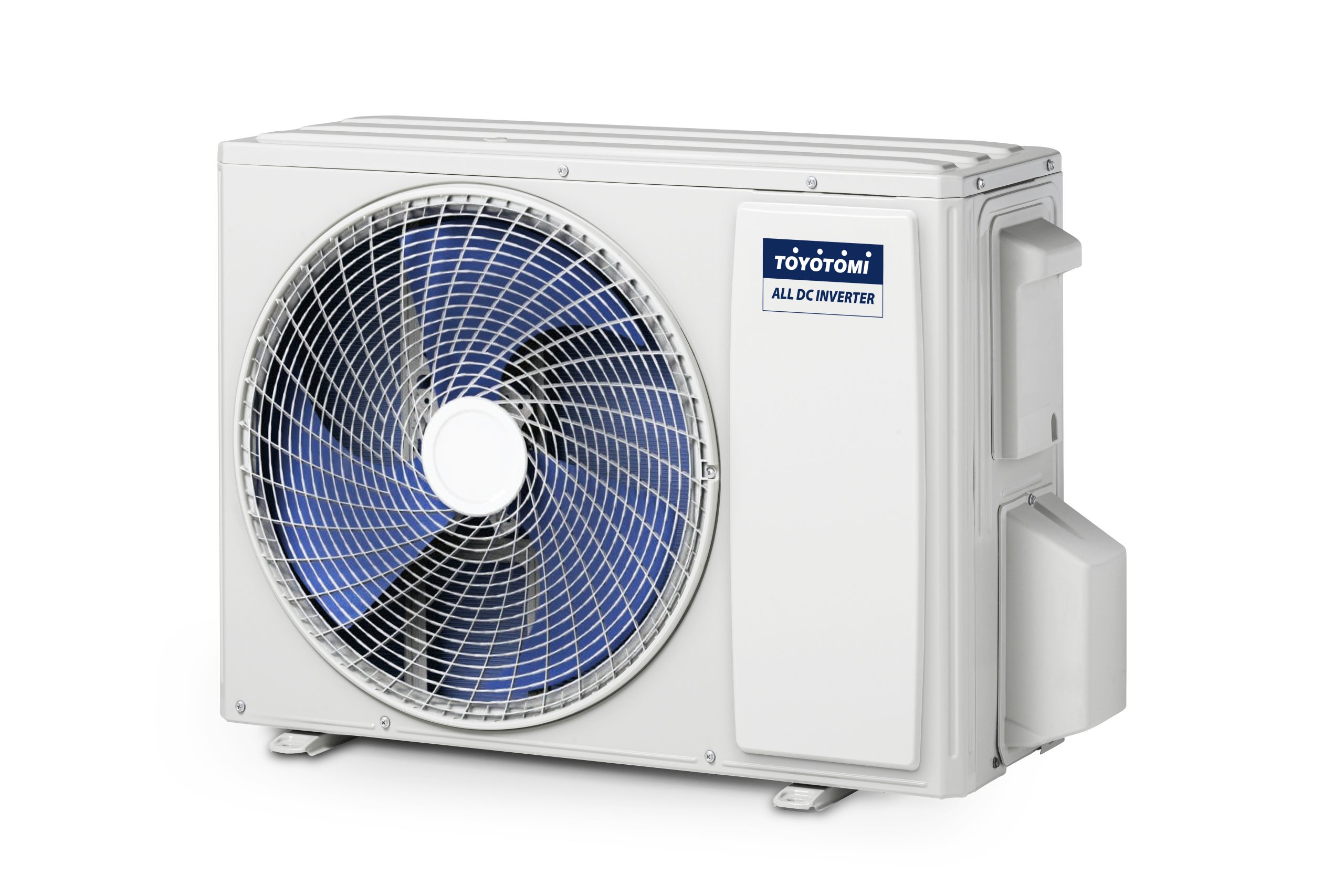

Outdoor Unit Dimensions (P*Y*B) 900x700x350 mm
Package dimensions (P*Y*B) 1020x770x430 mm
Net Weight 39/44 kg
Outdoor Unit Housing Metal
Piping Size
Refrigerant Piping Liquid Diameter 6.35 (1/4”) mm (inch)
Gas Diameter 15.88 (5/8”) mm (inch)
Maximum Length 25 m
Max. Altitude Difference 15 m
General Characteristics
Inverter function YES
Operating Limits °C Cooling -15~48
Refrigerant R32
Amount of Coolant 1,30 kg
CO2 EQUIVELANT 0,87750 Tons
Ionizer YES
Wi-Fi Pre-installed
Filters 2 High Density Pre Filters
1 x Antivirus Filter
1 x Active Carbon
Wi-Fi function
Ionist
Door Card control function
Hotel Menu function
Gold Fins
The Gold Fins coating enhances the air conditioner's durability, protecting it from corrosion caused by moisture, rain and salt, while also accelerating the defrosting process in heating mode for optimal performance in extreme weather conditions. Its antibacterial and hydrophilic properties ensure a cleaner, healthier air, preventing the accumulation of bacteria.
Quiet Operation Quiet
Energy Saving function / energy saving
The air conditioner automatically adjusts the temperature based on the factory setting so as to achieve the maximum possible energy savings.
Ecological Refrigerant R32
TOYOTOMI adheres to the ECO Design directive for environmental and energy saving issues, uses the unique R32 refrigerant in all home air conditioning ranges. It is completely environmentally friendly, it is easily recycled and achieves higher levels of performance, while contributing to longer product life.
All DC Inverter
Effective operational control, better performance and lower energy consumption, faster response in reaching the requested Set-Points. Uniform distribution & air diffusion due to inverter controlled indoor fan and lower noise levels of both indoor and outdoor units.
8°C heating mode
In case someone is away for a long time from home during the winter, the 8oC function ensures low consumption and a constant temperature of 8oC in the room so that it does not freeze.
High Density Pre Filter
Holds small particles of dust and pollen, offering fresh air in the room. For better performance and easy cleaning.
AUTO Clean Self-Cleaning Function
The indoor unit fan continues to run for a few minutes after the unit is turned off to dry the element.
