TCL AIR DUCT AIR CONDITIONER 24.000 BTU TCC-24D2HRH-DV
TCL AIR DUCT AIR CONDITIONER 24.000 BTU TCC-24D2HRH-DV
Semi-central Duct Type Air Conditioner
- Full 5D DC Inverter
- Low profile
- Self-cleaning function
- 7 fan operation levels
- Refrigerant R32
| Manufacturers | |
|---|---|
| BTU/H |
Description
TCL AIR DUCT AIR CONDITIONER 24.000 BTU TCC-24D2HRH-DV
TCL Duct Type Semi-Central Air Conditioner
- Full 5D DC Inverter
- Low profile
- Self-cleaning function
- 7 fan operation levels
- Refrigerant R32
| TCL model | TCC-24D2HRH/DV | ||
|---|---|---|---|
| Indoor unit | TCC-24D2HRH/DVI | ||

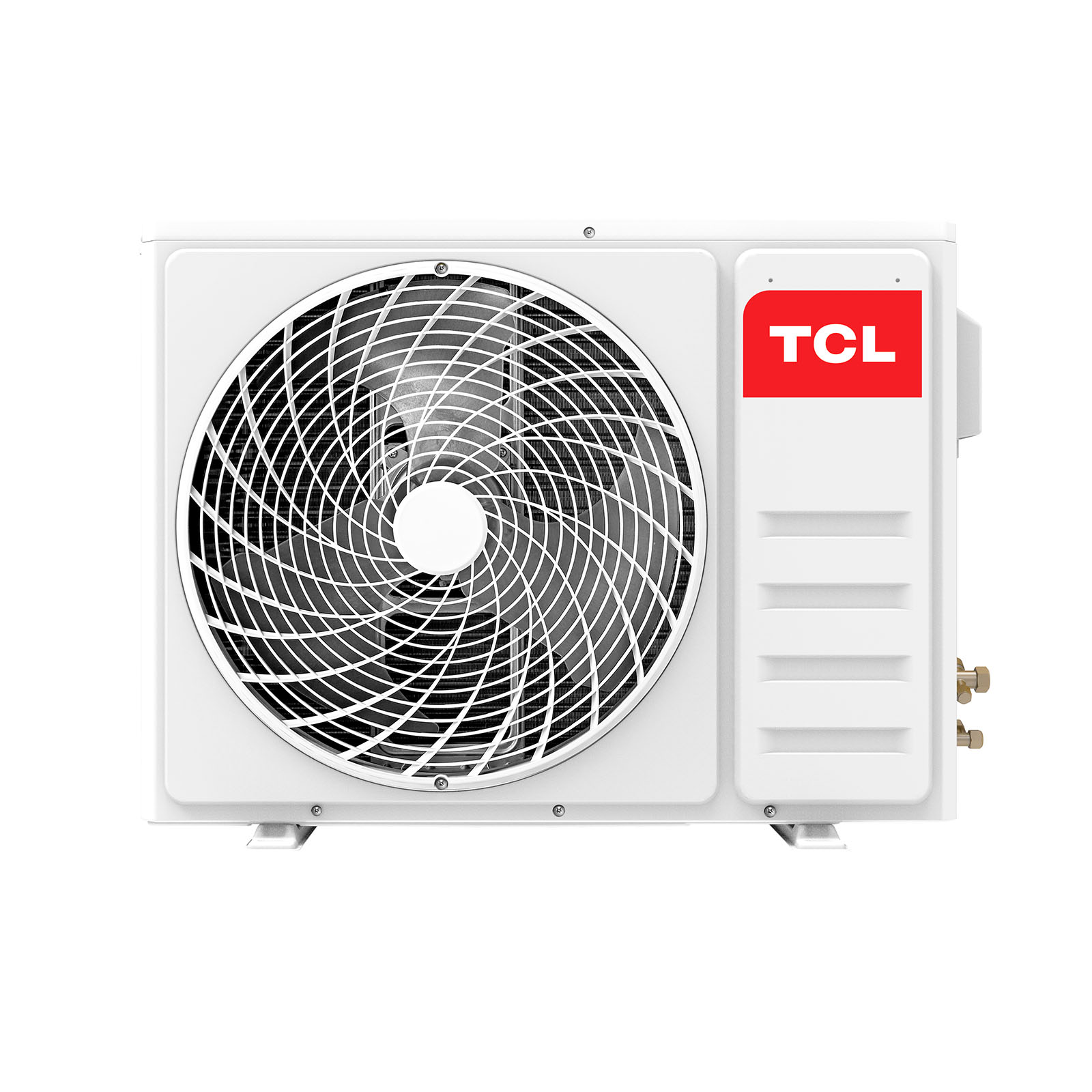

| Outdoor unit | TCC-24HRH/DVO | ||
| Nominal cooling efficiency | Btu/h | 24000(7500～27000) | |
| W | 7040(2200～7920) | ||
| Nominal heating efficiency | Btu/h | 26000(7900～28500) | |
| W | 7620(2320～8350) | ||
| Pdesignc | W | 7000 | |
| SEER | W/W | 6.1 | |
| Energy Class Cooling | A++ | ||
| Pdesignh (Middle zone) | W | 5600 | |
| SCOP (Middle zone) | W/W | 4.0 | |
| Heating energy class (Middle zone) | A+ | ||
| Annual energy consumption (Middle zone) | Cooling | kwh/a | 402 |
| Heating | kwh/a | 1960 | |
| Operating temperature range | °C | 16-31 | |
| Ambient temperature range | External | °C | Cooling:-15~53 / Heating:-20~30 |
| Indoor | °C | Cooling:17~32/Heating:0~30 | |
| AIR SUPPLY AND NOISE LEVEL | |||
| Indoor unit air supply (Cooling heating) | m3/h | 1000/1250 | |
| External static pressure of indoor unit (Range) | Pa | 0-80 | |
| Sound power level (S/H/M/L/Silent) | Indoor | dB(A) | 48/46/42/36/34 |
| Sound power level (Typical conditions) | External | dB(A) | 55 |
| ELECTRICAL COMPONENTS | |||
| Electrical supply/Connection | Indoor：220-240V~/50Hz/1P External：220-240V~/50Hz/1P |
||
| Power Supply Voltage Range | V | Indoor：176~265 External: 176~265 |
|
| Maximum Current | A | 13.5 | |
| Communication cable | 3x 0.75mm² | ||
| Power supply cable | Strands x Cross Section | Indoor：3×1.0mm² External：3×2.5mm² |
|
| PIPING CHARACTERISTICS | |||
| Cross section | Gas | Inches | 1/2″ |
| Liquid | Inches | 1/4″ | |
| Maximum length | m | 50 | |
| Maximum altitude difference | m | 25 | |
| Refrigerant Type/Quantity/GWP/CO2 Equivalent | R32/1.25kg/675/0.844tons | ||
| DIMENSIONS OF UNITS | |||
| Net dimensions (W x H x D) |
Indoor | mm | 920×270×570 |
| External | mm | 845×330×694 | |
| Panel | mm | / | |
| Net weight | Indoor | kg | 27 |
| External | kg | 39 | |
| Panel | kg | / | |
