Description
MITSUBISHI FDU125VSAWVH CASSETTE TYPE INDOOR UNIT 4 DIRECTIONS
| R32 | Micro Inverter |
| MODEL NAME SPECIFIED | FDU125VSAWVH |
| INDOOR UNIT | FDU125VH |

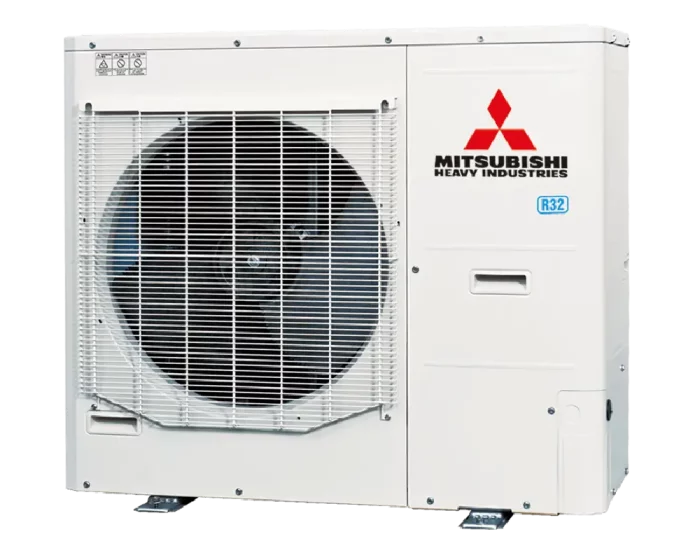

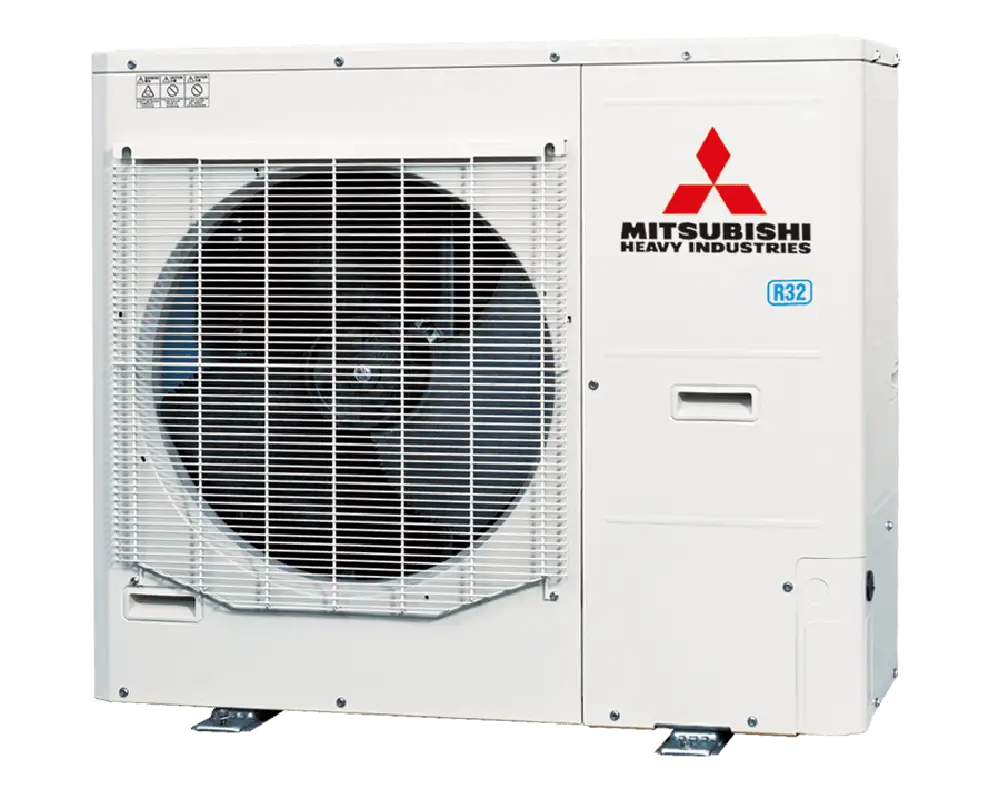

| OUTDOOR UNIT | FDC125VSA-W |
| POWER SUPPLY | THREE-PHASE 380-415V,50Hz/380V,60Hz |
| RATED COOLING EFFICIENCY (Min.~Max) | kW | 12.5(5.0~14.0) |
| NOMINAL HEATING EFFICIENCY (Min.~Max) | kW | 14.0(4.0~16.0) |
| POWER CONSUMPTION | COOLING/HEATING | kW | 4.36/3.69 |
| SEER/SCOP(Middle zone) | COOLING/HEATING | – |
| START-UP CURRENT | A | 5 |
| MAX. CURRENT | A | 17 |
| SOUND POWER LEVEL*1 |
|
|
dB(A) |
|
| SOUND PRESSURE LEVEL*1 |
|
|
dB(A) |
|
| AIR FLOW |
|
|
m3/minute |
|
| EXTERNAL STATIC PRESSURE*2 | Pa | Typical:60 Max:200 |
| EXTERNAL DIMENSIONS |
|
HeightXWidthXDepth | mm |
|
| NET WEIGHT |
|
|
|
|
| DIMENSIONS. REFRIGERANT PIPING | Liquid/Gas | 0mm | 9.52(3.8″)/15.88(5/8″) |
| PIPE LENGTH. REFRIGERANT(single track) | m | Max.50 |
| PEAK ALTITUDE DIFFERENCES | OUTDOOR UNIT IS HIGHER/LOWER | m | Mag.50/Mag.15 |
| OUTDOOR OPERATING TEMPERATURE RANGE |
|
|
|
| Air filter | Supply from trade |
| Remote control(optional) | wired:RC-EX3A, RC-E5,RCH-E3 wireless:RCN-KIT4-E2 |
