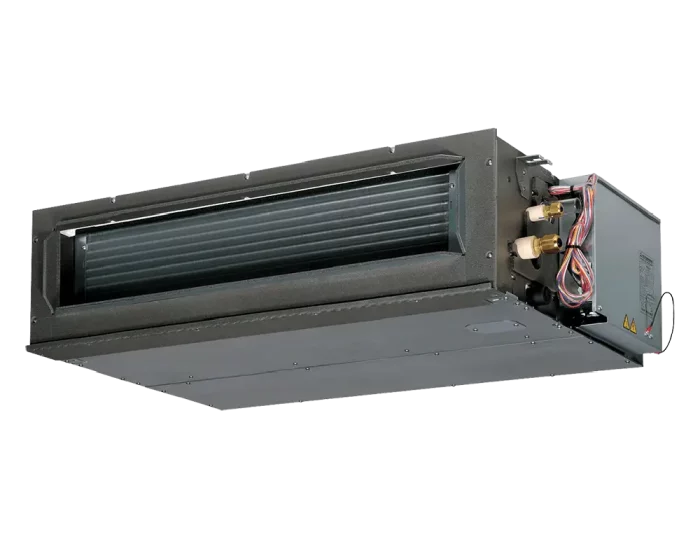

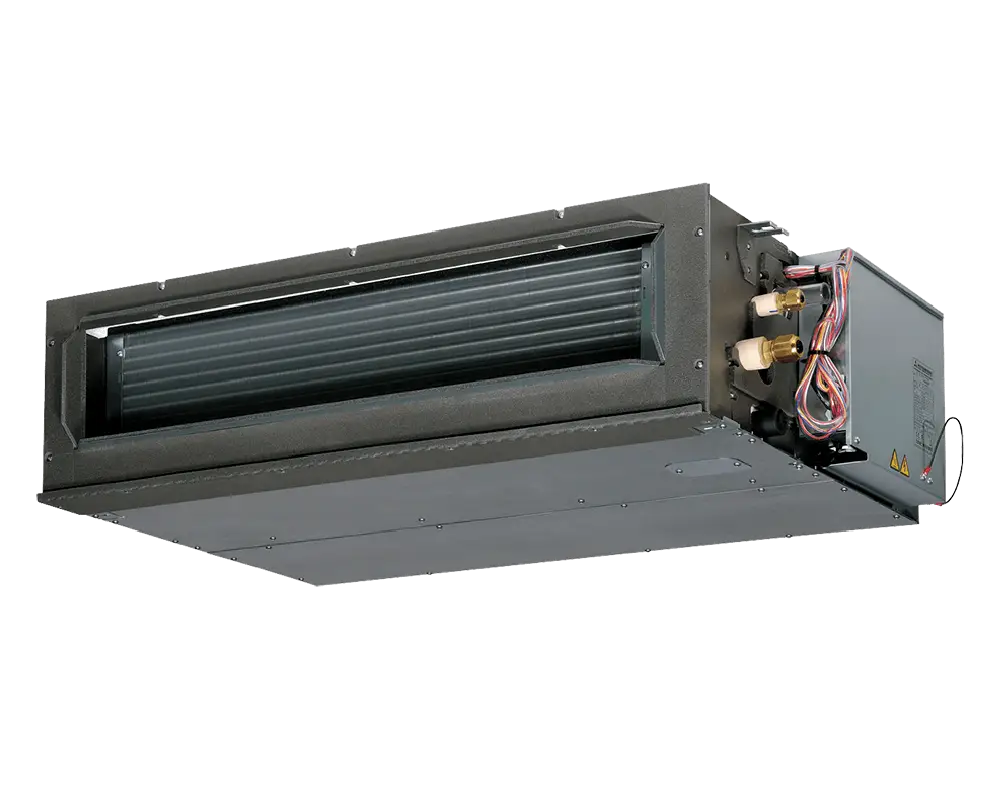

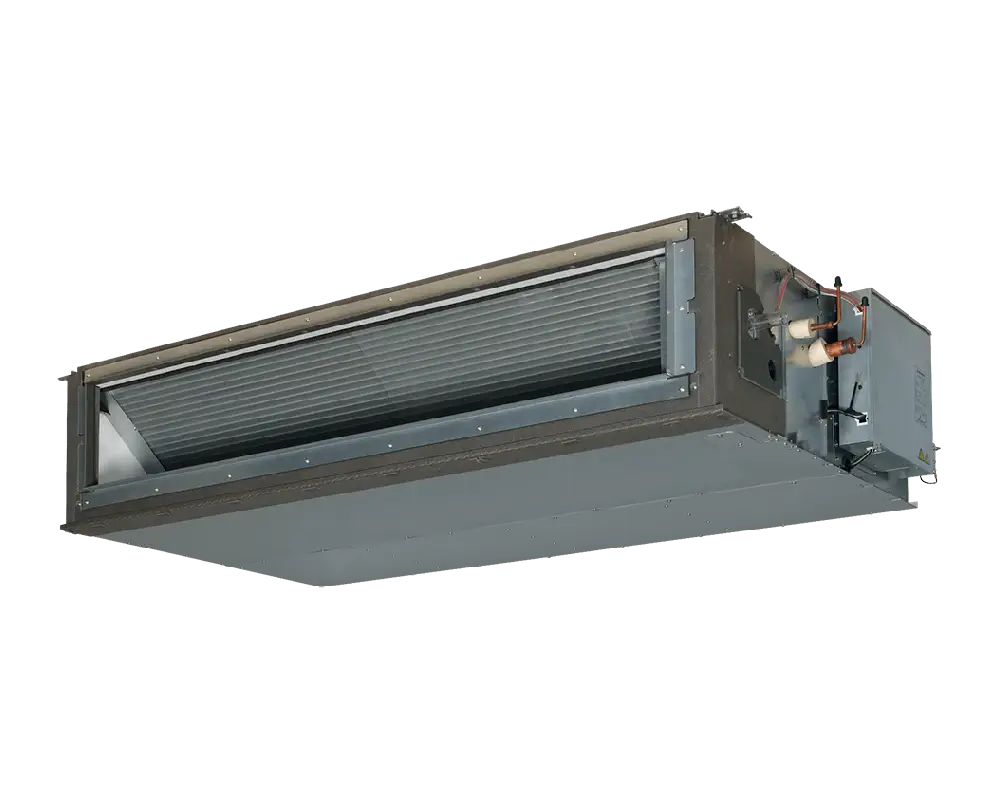

MITSUBISHI FDU71VNPWVH CASSETTE TYPE INDOOR UNIT 4 DIRECTIONS
MITSUBISHI FDU71VNPWVH CASSETTE TYPE INDOOR UNIT 4 DIRECTIONS
Request a Quote.
Add products to the shopping cart and send us the list to receive a quote.
Description
MITSUBISHI FDU71VNPWVH CASSETTE TYPE INDOOR UNIT 4 DIRECTIONS
| R32 | Standard Inverter |
| MODEL NAME SPECIFIED | FDU71VNPWVH |
| INDOOR UNIT | FDU71VH |

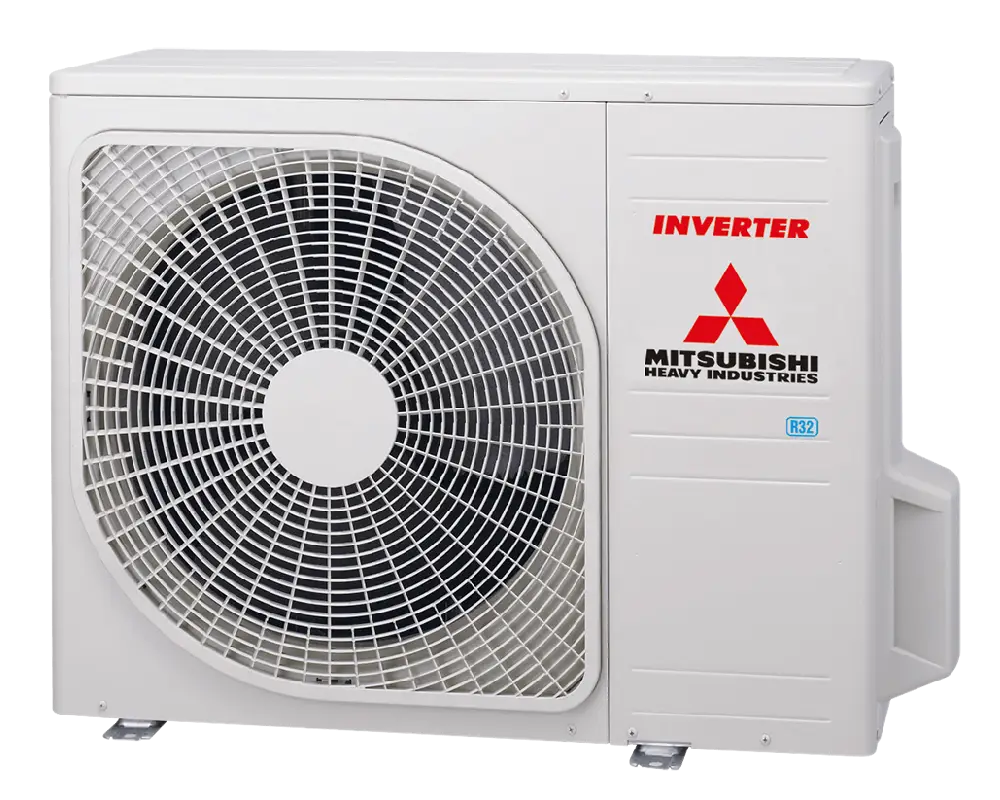

| OUTDOOR UNIT | FDC71VNP-W |
| POWER SUPPLY | SINGLE PHASE 220-240V,50Hz/220V,60Hz |
| RATED COOLING EFFICIENCY (Min.~Max) | kW | 7.1(1.5~7.3) |
| NOMINAL HEATING EFFICIENCY (Min.~Max) | kW | 7.1(1.1~7.3) |
| POWER CONSUMPTION | COOLING/HEATING | kW | 2.60/1.89 |
| SEER/SCOP(Middle zone) | COOLING/HEATING | 5.9 A++/4.2 A+ |
| START-UP CURRENT | A | 5 |
| MAX. CURRENT | A | 15.8 |
| SOUND POWER LEVEL*1 |
|
|
dB(A) |
|
| SOUND PRESSURE LEVEL*1 |
|
|
dB(A) |
|
| AIR FLOW |
|
|
m3/minute |
|
| EXTERNAL STATIC PRESSURE*2 | Pa | Typical:35 Max:200 |
| EXTERNAL DIMENSIONS |
|
HeightXWidthXDepth | mm |
|
| NET WEIGHT |
|
|
|
|
| DIMENSIONS. REFRIGERANT PIPING | Liquid/Gas | 0mm | 6.35(1.4″)/12.7(1/2″) |
| PIPE LENGTH. REFRIGERANT(single track) | m | Mag.30 |
| PEAK ALTITUDE DIFFERENCES | OUTDOOR UNIT IS HIGHER/LOWER | m | Mag.20/Mag.20 |
| OUTDOOR OPERATING TEMPERATURE RANGE |
|
|
|
| Air filter | Supply from trade |
| Remote control(optional) | wired:RC-EX3A, RC-E5,RCH-E3 wireless:RCN-KIT4-E2 |
