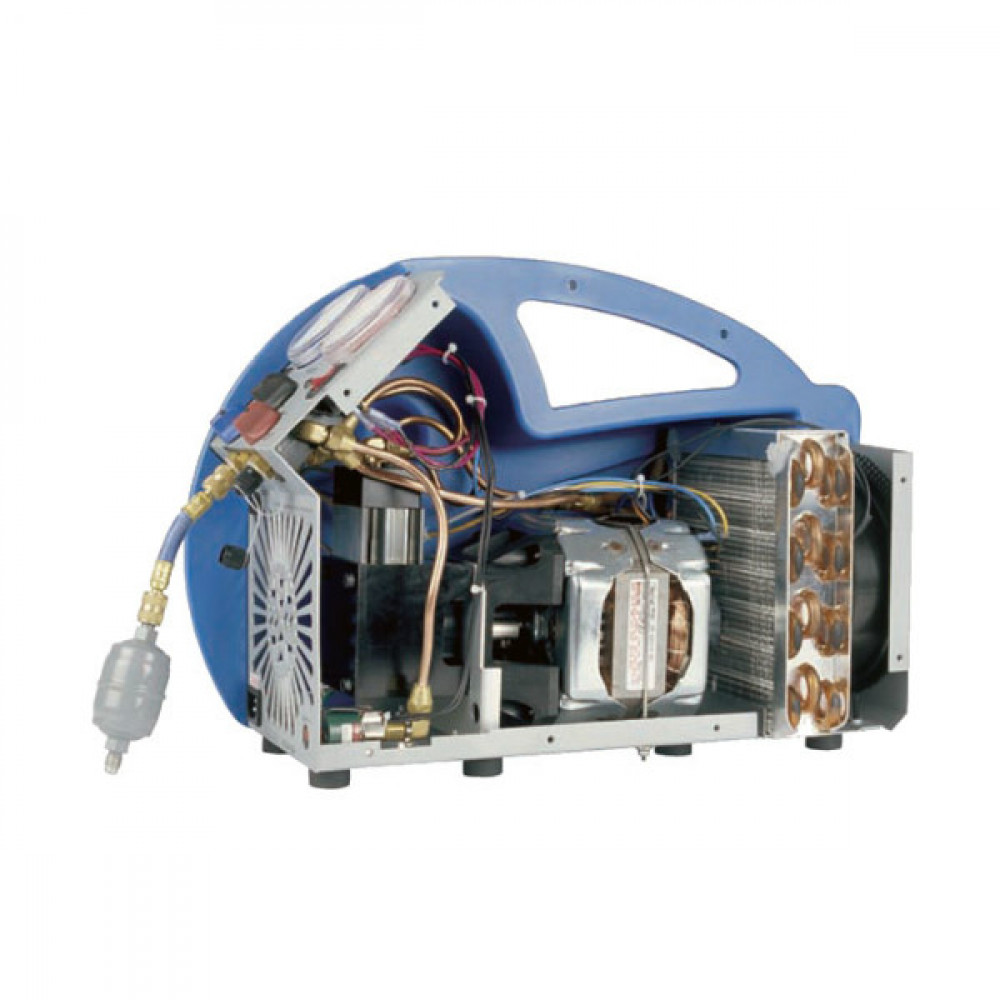

USA PROMAX MINIMAX RECOVERY DEVICE 230 V

The smartest recovery devices from our company , they now enable the professional, besides ecologically interesting , to take care of his financial well-being as well . Buying the most powerful recovery machines on the market , at the most favorable prices, but also with absolute support. American made PROMAX devices, operate with a compressor that is lubricated without oil, as a result of which they are able to recover any coolant or gas encountered by the technician even R 32.

TECHNICAL DATA
Type : Minimax-E
Application : Recovery of refrigerants in liquid and gaseous form
Suitable coolants for recovery :
R-11, R-12, R-13Β1,
R-22, R-23, R-123, R-134a, R-141Β, R-32
R-401A, R-401Β, R-402Α, R-402B,
R-404A, R-407C, R-407Β, R-407C, R-408A, R-409A, R-410A,
R-500, R-502, R-503, R-507
Power source : 230 V / 50 Hz
Power : 380 W
Dimensions : 250 x 222 x406mm
Weight : 11 kg
Recovery capabilities : Gas up to 17 kg/h
Liquid up to 50 kg/h(Simple connection)
Push-pull connection up to 240 kg/h
Volume (displacement) : 8,2cm3
Rpm’s : 1437 U / min
Maximum working pressure : 38,5 bar (550 psi)
Safety device : Pressure safety switch type P100 DA with manual reset (550 psi / 38,5 bar).
caution :
Minimax-E must not be used with flammable gases or gases containing ammonia.
