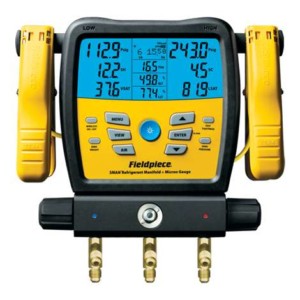

FIELDPIECE ΚΑΣΑ ΜΑΝΟΜΕΤΡΩΝ ΗΛΕΚΤΡΟΝΙΚΗ ΑΣΥΡΜΑΤΗ 2ΠΛΗ SM380V ΚΕΝΟΜΕΤΡΟ

• Extremely durable construction
• Accurate measurements in real time
• LOAD DATA
• Generate reports with the Job Link® System application
• System tightness control with temperature compensation
• Sends and receives wireless readings up to 1.000 ’
• Shielded thermocouple sockets for pipe and outdoor temperatures
• A2L coolant ready, such as R32
• Water resistant (IP54)

Η κασα της FILDPIECE είναι κατασκευασμένη για συνεχή λειτουργία.

Features for the MANOMETER CASE ELECTRONIC 2-WAY SM380V WIRELESS MANOMETER FIELDPIECE

• Screen: LCD (diagonal 5 inches)
• Backlight: Blue (adjustable duration)
• Low battery indicator: occurs when the battery voltage drops below the operating level.
• Over Range Display: OL for pressure, for temperature
• Automatic deactivation: 30 idle minutes (adjustable)
• Maximum manifold pressure: 800 Psig (5500 kPa)
• Battery type: 6 x AA alkaline
• Battery life: 350 hours typically (without space, backlight and wireless)
• Radio frequency: 2,4 GHz
• Wireless range: Visual distance 1000 feet (305 meters)
• The distance between obstacles decreases
• Data port: Micro USB (to extract data logs or update firmware)
• Operating environment: 32 °F to 122 ° F (0 ° C to 50 ° C) in <75% RH
• Storage environment: -4 °F to 140 ° F (-20 ° C to 60 ° C) in <80% RH (with battery removed)
• Temperature coefficient: 0,1 x (specified accuracy) per °C (0 ° C to 18 ° C, 28 ° C to 50 ° C), per 1,8 ° F (32 °F to 64 ° F, 82 °F to 122 ° F)
• Weight: 4,03 pounds (1,83 kg)
• Water resistant: Designed to IP54

By combining new wireless technology with an easy-to-use interface with all readings on one easy-to-read display, quickly maximize the performance of any air conditioning or refrigeration unit for FIELDPIECE PRESSURE GAUGE CASE ELECTRONIC 2WAY SM380V WIRELESS GAUGE

• Stores up to nine jobs in memory
• Easy download via USB port
• It displays % free storage space before recording starts
• Records up to seven days (168 continuous hours)
• Leakage test
• Adjust the auto-off duration
• Adjust the backlight duration
• Set high and low vacuum alarms
• Select each unit of measurement separately
• Wireless up to 1.000 ’.

Μπορείτε να λάβετε ζωντανές αναγνώσεις απευθείας στην οθόνη της FIELDPIECE από τα Εργαστήρια Ψυχομέτρων Job Link (JL3RH), Job Clamp Pipe Clamps (JL3PC and JL3LC) and SRS3 Refrigerant Scale. No wires and no mess. You can place pipe clamps in the ideal location, even track and record live coolant usage for accurate recovery, charging and documentation. Θα μπορείτε επίσης να βλέπετε στην κασα της FIELDPIECE μετρήσεις και υπολογισμούς αέρα σε πραγματικό χρόνο, while making adjustments.

GAUGE CASE ELECTRONIC 2-WAY SM380V WIRELESS GAUGE FIELDPIECE
