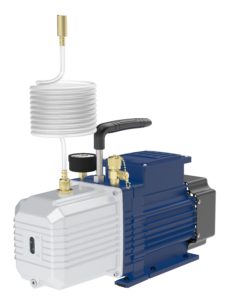

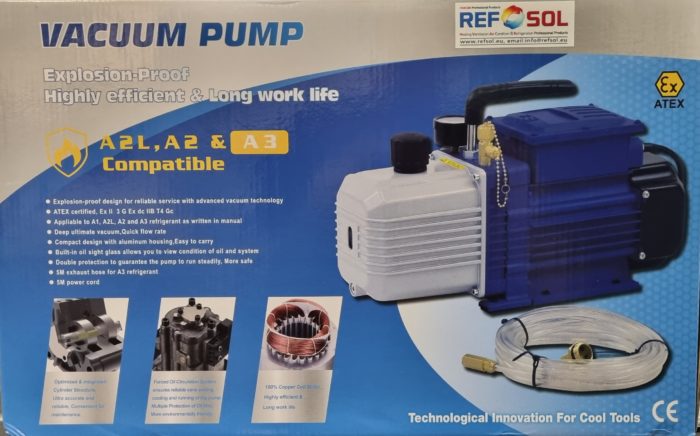

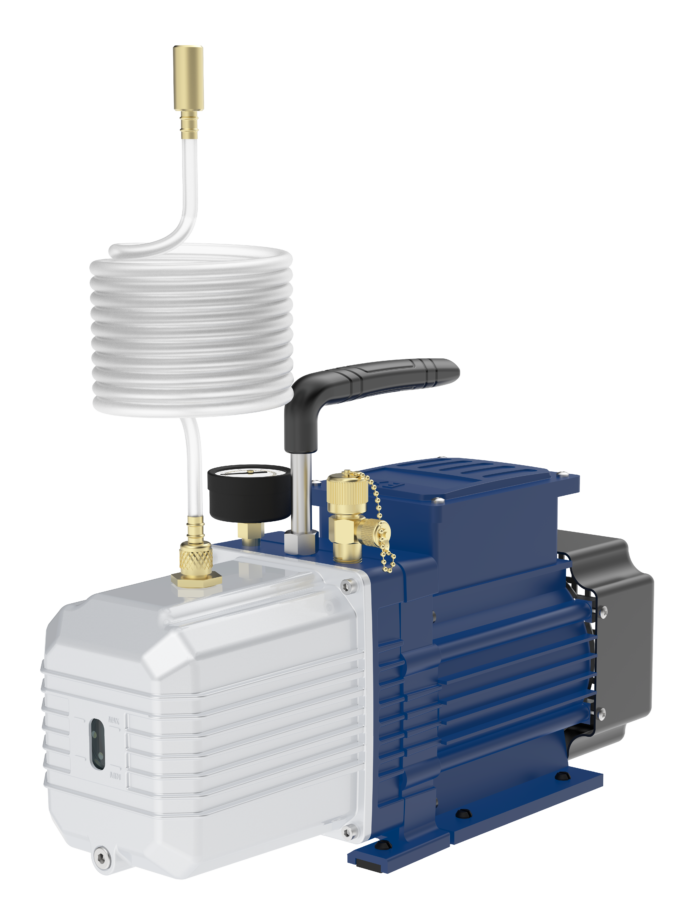

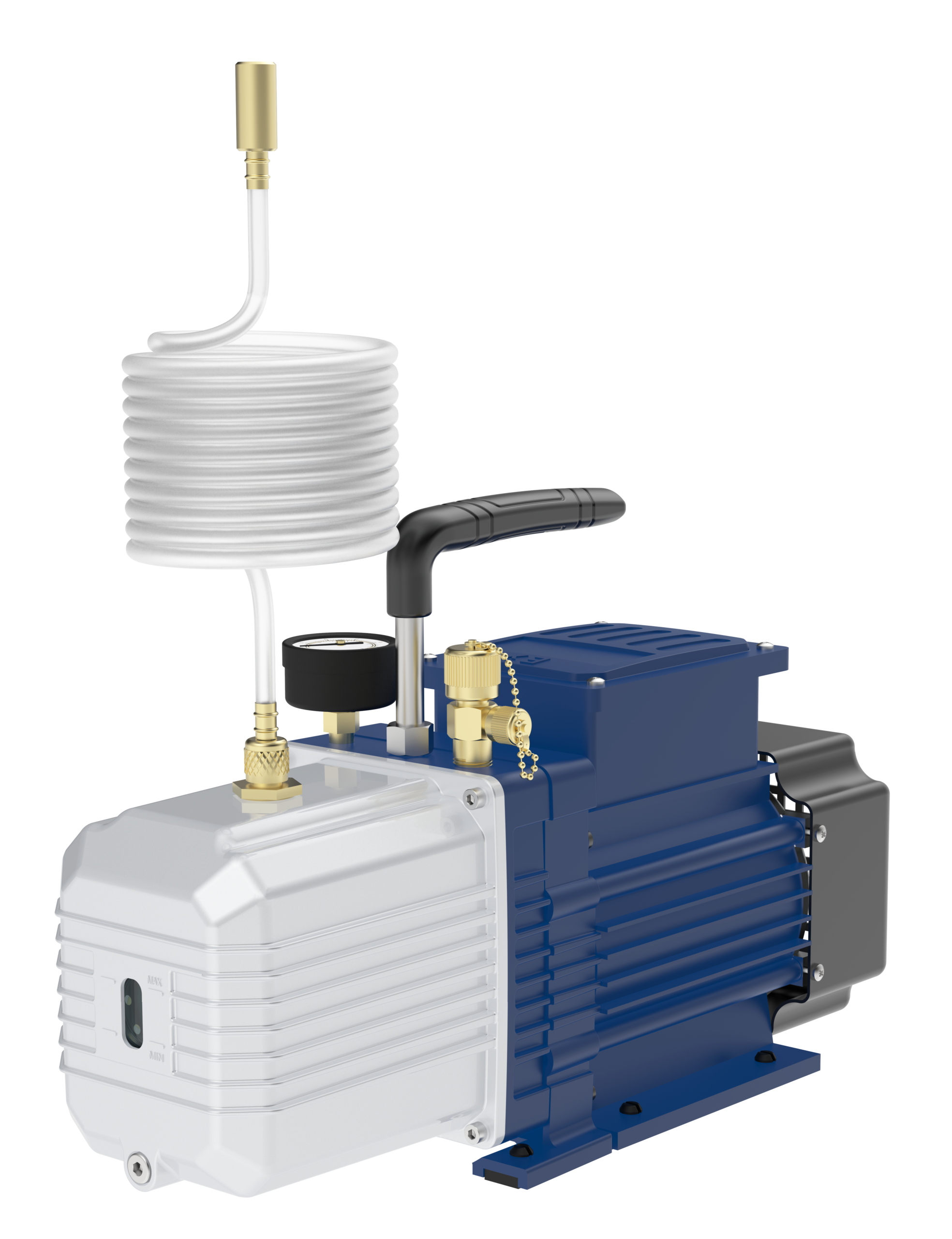

REFSOL VACUUM PUMP atex TWO LEVELS 6CFM-170 lit EXPLOSION PROOF OI6D-EX
REFSOL VACUUM PUMP atex TWO LEVELS 6CFM-170 lit EXPLOSION PROOF OI6D-EX
The vacuum pump is used to evacuate HVAC/R repair and new installations. For use in cooling systems using Class A1 (non-toxic, non-flammable), Category A2L (non-toxic, low flammability) and Class A2 (non-toxic, flammable) and A3 (non-toxic, flammable).
| Manufacturers |
|---|
REFSOL VACUUM PUMP atex TWO LEVELS 6CFM-170 lit EXPLOSION PROOF OI6D-EX
Two stage vacuum pump
●Input port :1/4”&3/8″SAE
●Χωρητικότητα:
170 L/Min / 6CFM @ 50Hz,
198 L/Min / 7CFM @ 60Hz
●Μοτέρ: 4 AC poles, single phase
220-240V – 50/60hz
●Ισχύς : 1HP
●Περιλαμβάνει 2 capacitors (startup and operation )
●Thermal and current overload protection
●Rotary vane pump 2 stages
● Evaluation 15 micron
●Power switch with explosion protection
● Length power cord 5 meters
●Standard exhaust port + 5m long pipe
evaporation
●Includes vacuum gauge.
TECHNICAL CHARACTERISTICS OF REFSOL VACUUM PUMP
| TYPE | OI6D-EX | |
| FLOW RATE | 50 Hz | 6,0 CFM |
| 170 L/MIN | ||
| 60Hz | 7,0 CFM | |
| 198 L/MIN | ||
| ABSOLUTE VACUUM | Partial pressure | 1X10-1Pa |
| Total pressure | 7,5 small ones | |
| POWER | 1HP, AC motor, 1425RPM@50Hz | |
| ENTRANCE DOORS | 1/4”&3/8SAE | |
| AMOUNT OF OIL | 600 ml | |
| dimensions (mm) | 440x150x260 | |
| WEIGHT | 18,3 kilos | |
APPLICATIONS
The REFSOL vacuum pump is used to evacuate HVAC/R repair and new installations. For use in cooling systems using Class A1 (non-toxic, non-flammable), Category A2L (non-toxic, low flammability) and Class A2 (non-toxic, flammable) and A3 (non-toxic, flammable).
| COOLING LIQUIDS – A3 Refrigerants | |||||||||
| COMPATIBLE WITH LIQUIDS | R50 | R170 | R290 | R600 | R600a | R601 | R601a | R1270 | R430A |
| R431A | R433A | R433B | R433C | R436A | R436B | R441a | R443A | R511A | |
| NOT COMPATIBLE WITH LIQUIDS | R702 | RE170 | R1150 | R429A | R432A | R435A | R510A | ||
