ASPEN PUMP CONCEPTY AIR CONDITIONS MINI WHITE SILENT+
ASPEN PUMP CONCEPTY AIR CONDITIONS MINI WHITE SILENT+
| Manufacturers |
|---|
Description

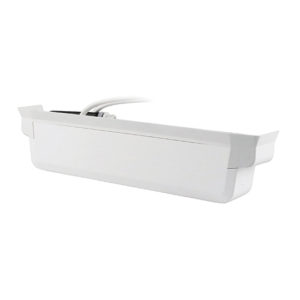

ASPEN PUMP CONCEPTY AIR CONDITIONS MINI WHITE SILENT+
New MINI White Silent+ concentrate pump from Aspen Pumps one of the world's leading manufacturers in condensate pump for cooling applications, PAINTERS
The new pump is incredibly silent, Easy to install and maintain. The mini White Silent+ pump, It is designed to fit each side of the inner unit of the air conditioner. The detachable water tank , It easily unbuttones to clean up during maintenance.
Maximum flow of 45L/h maximum flow
Maximum input head 10m maximum input head (23l/h)
Noise level just 16db(A) during operation
ASPEN MINI WHITE SILENT+
Rejection to and 10 manometric meters (height) - 45ltrs/h in @ 0 manometric
• supply of water: 23 ltrs per hour at 10m manometric
• detachable reservoir for easy maintenance
• Extra low noise level during operation (just 16db at 1m)
• its small volume makes it ideal to fit in narrow and low parts (65mm y x 292mm Φ x 48mm P)
• Consumption of power: 0.18A, 2.1W, 230VAC 50-60Hz, class II
• Maximum water temperature: 40°C, IP24
• relay contact: 5Amp NO & NC
•Είσοδος: 1x16mm – 26mm
• Exit with a 6mm tube
• Thermal motor protection: YES
• supply of water: 23 ltrs per hour at 10m manometric
• detachable reservoir for easy maintenance
• Extra low noise level during operation (just 16db at 1m)
• its small volume makes it ideal to fit in narrow and low parts (65mm y x 292mm Φ x 48mm P)
• Consumption of power: 0.18A, 2.1W, 230VAC 50-60Hz, class II
• Maximum water temperature: 40°C, IP24
• relay contact: 5Amp NO & NC
•Είσοδος: 1x16mm – 26mm
• Exit with a 6mm tube
• Thermal motor protection: YES
COMMERCIAL BROCHURE
TECHNICAL BROCHURE
