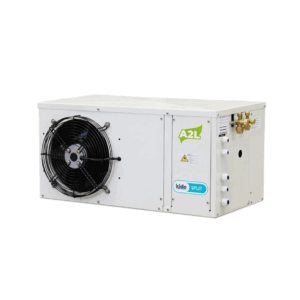

kide machine monoblock ESC2007H1G maintenance performance 2130W ceiling R-449A

Monoblock kide.Professional cooling equipment ,ceiling , for cold storage rooms, which have a small volume.

Series -200. Operating limits -10 Celcious until -15 Celcious

Μοντέλο ESC2007H1G. Closed type compressor.

Ψυκτική απόδοση – 2130W

Για ογκο θαλάμου 20-27m3 (in a hot climate – in a cold climate )

Power supply 230V/1/50HP

Compressor -3/4hp -0,5W

Refrigerant – R-445A<2,5

Κατανάλωση 5,1A

Μέγιστο φορτιο 7,3A

condenser -evaporator 1040m3-1590m3

Bάρος -100κιλα

Pre-charged with coolant (Maximum length 10 m).
Hermetic / scroll compressor.
Service valves (Series 100 – 200 – 300).
Fluid receiver.
Ceramic filter drier.
Liquid observation glass.
High and low pressure switch.
Condensation control via pressure switch.
"dirty condenser" sensor alert.
Thermostatic expansion valve on the evaporator.
Evaporator solenoid valve.
Automatic air defrost.
Nitrogen dual flow vaporizer with low air flow.
Power cord (3 m) (Series 100 – 200 – 300).
Electrical interface (3) evaporator (10 m) (Series 100 – 200 – 300).
Remote controlled multifunctional electronic control (5 m) (Series 100 – 200 – 300).
Lighting cable (3 m) (Series 100-200-300).
Voltage protector in three-phase version.
Exhaust fan.
Sealed electrical panel.

OPTIONAL FOR kide MACHINES (Request delivery)

Winter Kit. Rotation system / failure for two units.
Voltage protector.
Anti-corrosion treatment on the condenser coil / evaporator.
With independent electrical panel (series 100-200-300).
Oil separator (series 200-300-400-500).
Evaporator condensate pump.
Nitrogen filling.
Time control.
Humidifier external to the equipment and control system.
Monitoring and control system.

XWEB remote management.
